Product Detailed Parameters
- Description：ANTFLAT PATCH 2.4GHZ 14DBI
- Series：HG
- Mfr：L-com
- Package：Bag
- RF Family/Standard：Bluetooth, General ISM, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.45GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Flat Patch
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：14dBi
- Features：-
- Termination：Screw-Mount
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：1.000" (25.40mm)
- Applications：802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN
- Power - Max：25 W
Download product information
Overview

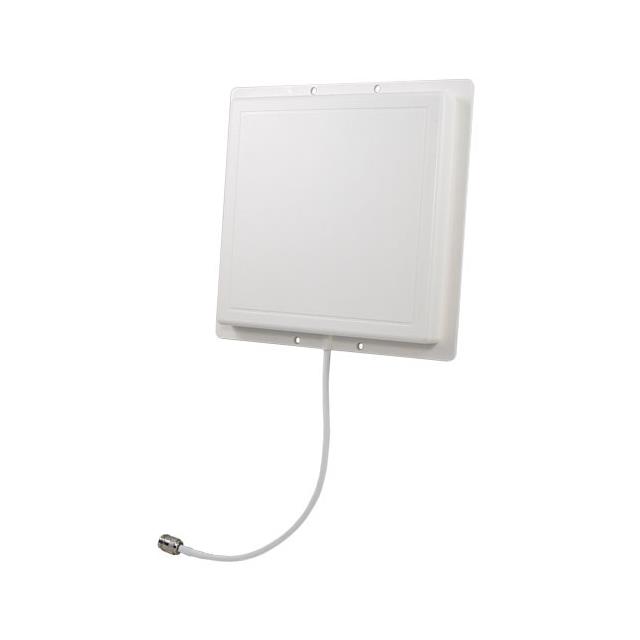

The HG2414P-RTP is a high-performance directional flat patch antenna designed for the 2.4 GHz ISM band, specifically covering 2.4 GHz to 2.5 GHz with a center frequency of 2.45 GHz. It provides a gain of 14 dBi and supports a maximum power of 25 W. The unit features an RP-TNC plug connector and measures 8.5 inches square with a maximum height of 1.000 inch (25.40 mm). It exhibits a VSWR of 1.5 and utilizes screw installation.
Feature Summary
- Directional flat patch design optimized for indoor and outdoor environments
- Durable UV-stable radome rated for UL flame safety standards
- Low-loss solid brass elements integrated with DC short lightning protection
- Compact square form factor suitable for space-constrained mounting
Applications
- 802.11b/g/n Wi-Fi networks
- Bluetooth communication systems
- ISM band industrial applications
- WLAN infrastructure deployment
Procurement Notes
Verify that the specific part number matches the RP-TNC plug configuration, as other variants in the HG2414P series utilize different connectors such as Type N female or standard TNC interfaces. Confirm the required cable length if a pre-assembled version is needed, as the base antenna may be sold separately from coaxial cables. Ensure environmental ratings align with the intended installation location.
Selection Notes
Select this model when high directivity and 14 dBi gain are required for point-to-point or point-to-multipoint links within the 2.4 GHz spectrum. It is appropriate for scenarios demanding robust weather resistance due to its UV-stable construction. Consider alternative models if a different connector type like Type N is mandatory or if lower gain profiles suffice for broader coverage needs.
Part Context
This component belongs to the HG2414P series of high-performance directional antennas manufactured by L-com. The series includes various configurations tailored for the 2.4 GHz ISM band, offering consistent performance across indoor and outdoor deployments. The HG2414P-RTP variant specifically distinguishes itself through its RP-TNC interface, catering to equipment requiring this specific connection standard.
Replacement Considerations
- HG2414P-NF
- HG2414P
FAQ
What is the maximum power handling capacity of the HG2414P-RTP?
The antenna supports a maximum power input of 25 W.
Does the HG2414P-RTP include a cable?
Product descriptions indicate availability with low-loss coaxial cables, but specifications should be checked to confirm if the cable is included or sold separately.
