HG2414P

Overview

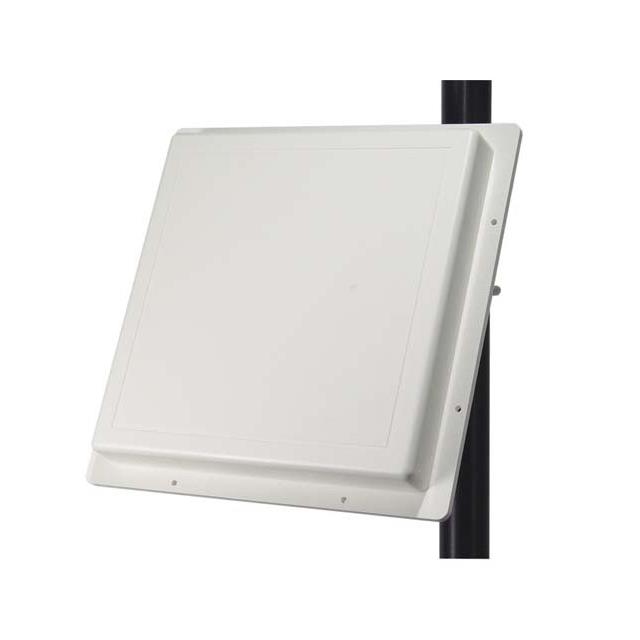

The L-com HG2414P is a high-performance directional flat patch antenna designed for the 2.4GHz ISM band, specifically operating within a frequency range of 2.4GHz to 2.5GHz with a center frequency of 2.45GHz. It delivers a gain of 14dBi and maintains a VSWR of 1.5:1. The unit features a Type N female connector and supports a maximum power input of 25 W. Physically, it utilizes a screw mount installation type with a maximum height of 1.000 inch (25.40mm). This component is engineered for robust indoor and outdoor wireless communication applications.

Feature Summary

• High-gain directional radiation pattern optimized for long-range point-to-point links
• Durable flat patch construction suitable for harsh indoor and outdoor environments
• Integrated Type N female connector for secure coaxial cable attachment

Applications

• 802.11b/g/n Wi-Fi network infrastructure
• Bluetooth device connectivity systems
• Industrial, Scientific, and Medical (ISM) band operations
• Wireless Local Area Network (WLAN) deployments

Procurement Notes

Verify that the specific order matches the HG2414P designation, which includes a Type N female connector and bracket mounting configuration. Confirm compatibility with existing coaxial cabling standards. Ensure environmental ratings meet project requirements for intended indoor or outdoor deployment scenarios without relying on generic family specifications.

Selection Notes

Select this model when high directivity and 14dBi gain are required for 2.4GHz applications. The Type N female interface dictates compatible cable selection. Consider the physical dimensions and screw-mount requirement for structural integration. Evaluate against lower-gain omnidirectional alternatives if broader coverage angles are necessary instead of focused beamwidth.

Part Context

This component belongs to the HG series of high-performance directional antennas from L-com. The series focuses on providing reliable RF solutions for industrial and commercial wireless networks. The HG2414P variant specifically addresses needs for extended range communication within the 2.4GHz spectrum using a robust flat panel design.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact connector gender and mounting style before considering alternative models from other manufacturers.
