HGF58MDH

Overview

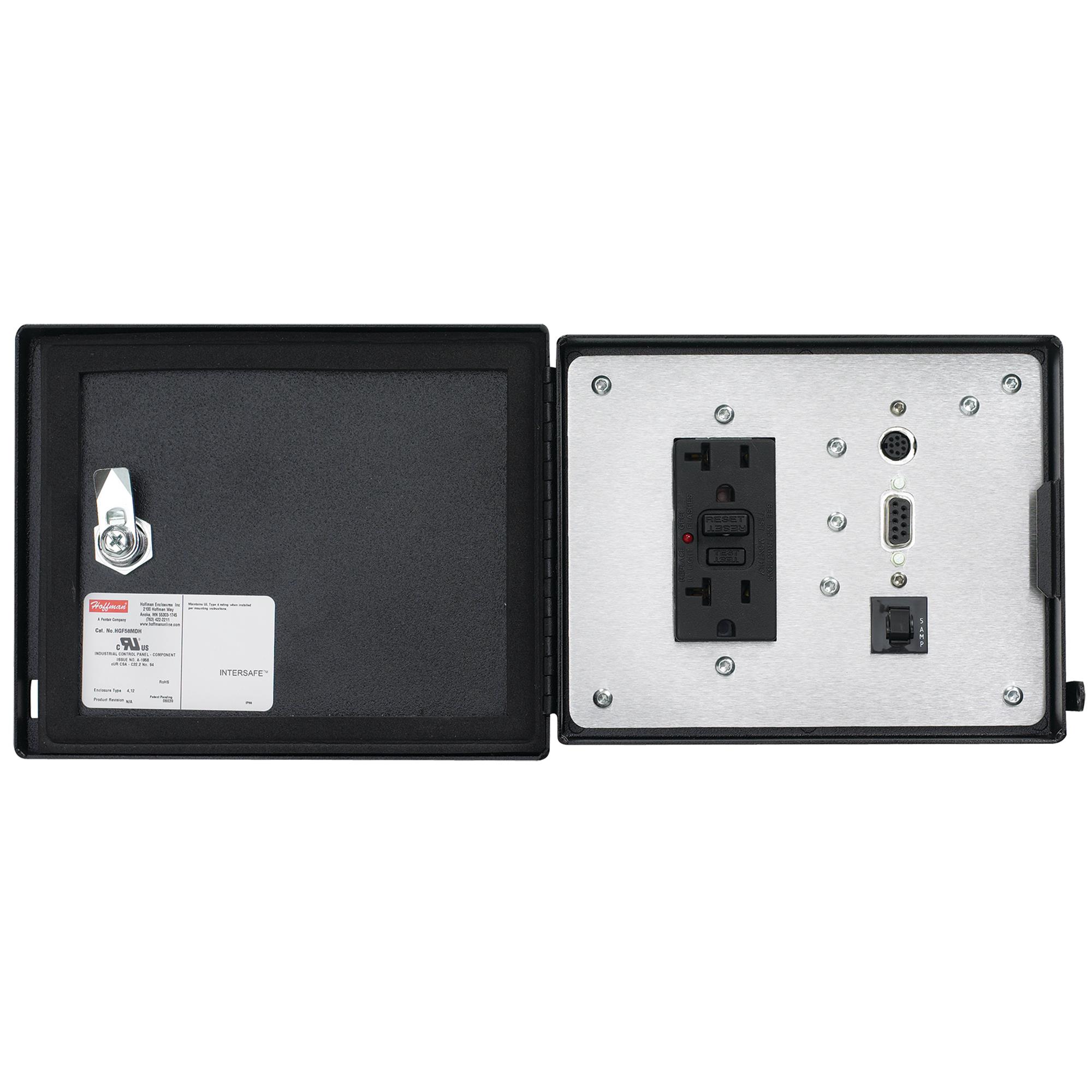

The HGF58MDH is an InterSafe data interface port module manufactured by nVent Hoffman. It supports the Data Highway Plus protocol and features a 120 VAC configuration. The unit includes an 8-pin Mini DIN connector, a DB9F connector, and a 5 A circuit breaker. Constructed from aluminum with a black finish, it serves as a rack accessory for industrial enclosure integration.

Feature Summary

• Supports Data Highway Plus protocol communication
• Integrated 5 A circuit breaker for protection
• Aluminum construction with black finish

Applications

• Industrial automation control panels
• Data Highway Plus network interfaces
• Enclosure-mounted data ports

Procurement Notes

Verify compatibility with existing Data Highway Plus networks before procurement. Confirm that the 120 VAC power requirement aligns with the target installation environment. Ensure the physical dimensions fit the intended rack or enclosure space. Check for any specific mounting hardware requirements not included in the standard package.

Selection Notes

Select this model when Data Highway Plus connectivity is required within an enclosed system. The integrated circuit breaker provides essential overcurrent protection. Verify that the 8-pin Mini DIN and DB9F interfaces match the connected devices. Consider the aluminum build for durability in industrial settings.

Part Context

This component belongs to the nVent Hoffman InterSafe series, designed for secure and reliable data transmission in industrial environments. It functions as a specialized rack accessory, enabling seamless integration of communication protocols into standard enclosure setups while maintaining safety standards through built-in circuit protection.
