Product Detailed Parameters
- Description：10IN 4 SHROUD RAL7035 MS
- Series：*
- Mfr：Hoffman Enclosures, Inc.
- Package：Bulk
Download product information
Overview

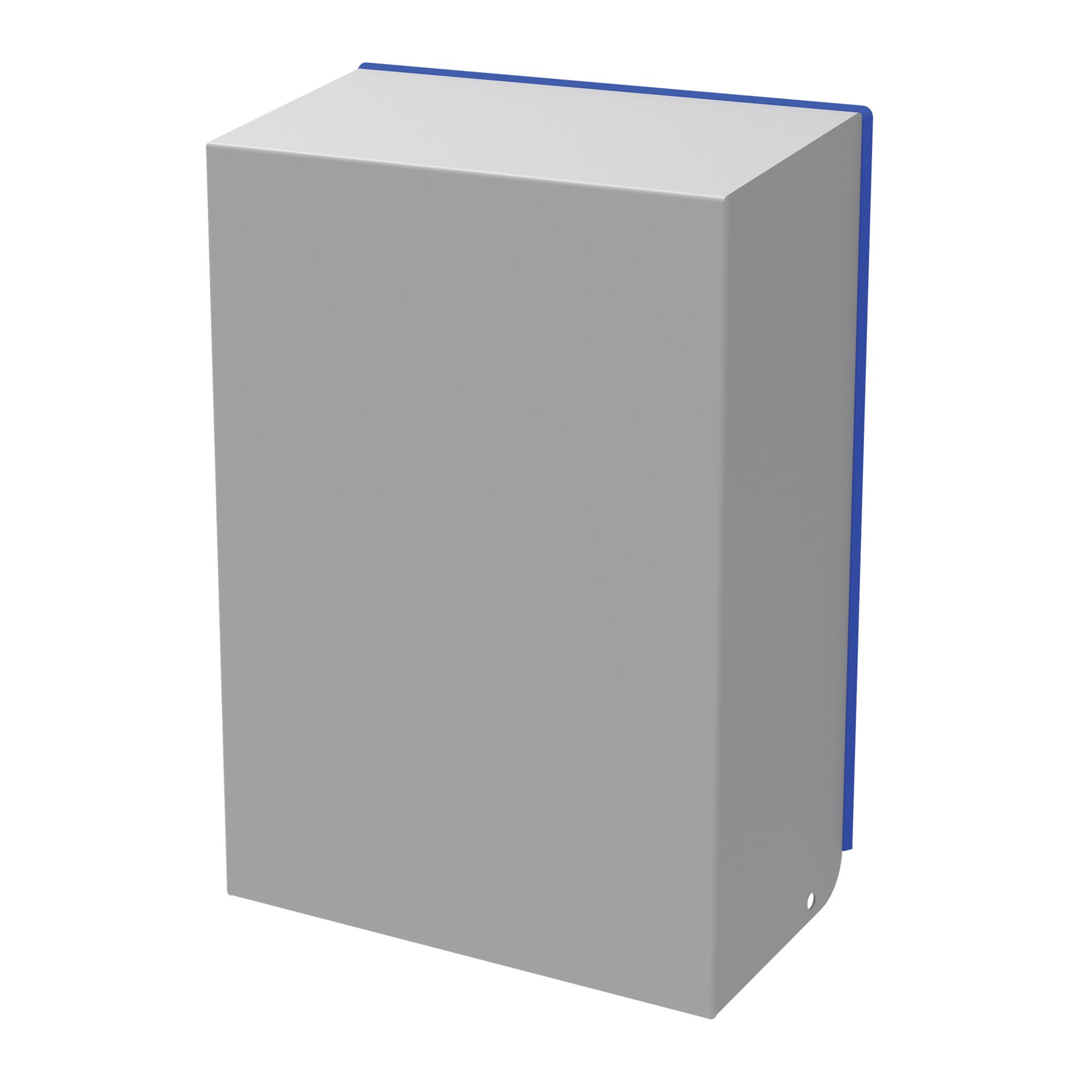

The nVent Hoffman HH10MS35004 is a Type 4/4X filter fan shroud constructed from steel with a light gray finish. It measures 16.66 x 11.90 x 5.20 inches and is designed to protect filter fans and exhaust grills during standard washdown procedures. This component meets Type 4/4X standards when paired with compatible HF or TFP series units, effectively mitigating dust and water ingress to extend electronics life.
Feature Summary
- Protects filter fans and exhaust grills from standard washdown procedures
- Meets Type 4/4X environmental standards when used with specified compatible units
- Mitigates dust and water ingress to extend electronics life
Applications
- Protection of filter fans in industrial enclosures
- Shielding exhaust grills during high-pressure cleaning
- Environmental sealing for electronic components in washdown areas
Procurement Notes
Verify compatibility with specific HF or TFP series filter fans before purchase. Confirm dimensional requirements match the enclosure opening. Ensure the application environment aligns with Type 4/4X standards. Check material specifications for corrosion resistance needs. Validate that the light gray steel finish meets aesthetic or functional site requirements.
Selection Notes
Select this shroud only when using compatible nVent Hoffman HF or TFP filter fans to ensure Type 4/4X compliance. Consider the physical dimensions of 16.66 x 11.90 inches for fitment. Evaluate the need for washdown protection versus other environmental seals. Steel construction offers durability but requires consideration for corrosive environments beyond standard washdown.
Part Context
This component belongs to the nVent Hoffman HH10 series of filter fan shrouds. These accessories are engineered to enhance the environmental protection of ventilation systems within electrical enclosures. The product line focuses on maintaining NEMA ratings during maintenance activities like washing.
Replacement Considerations
No public confirmed substitute part numbers are available.
