HH10SS04001

Overview

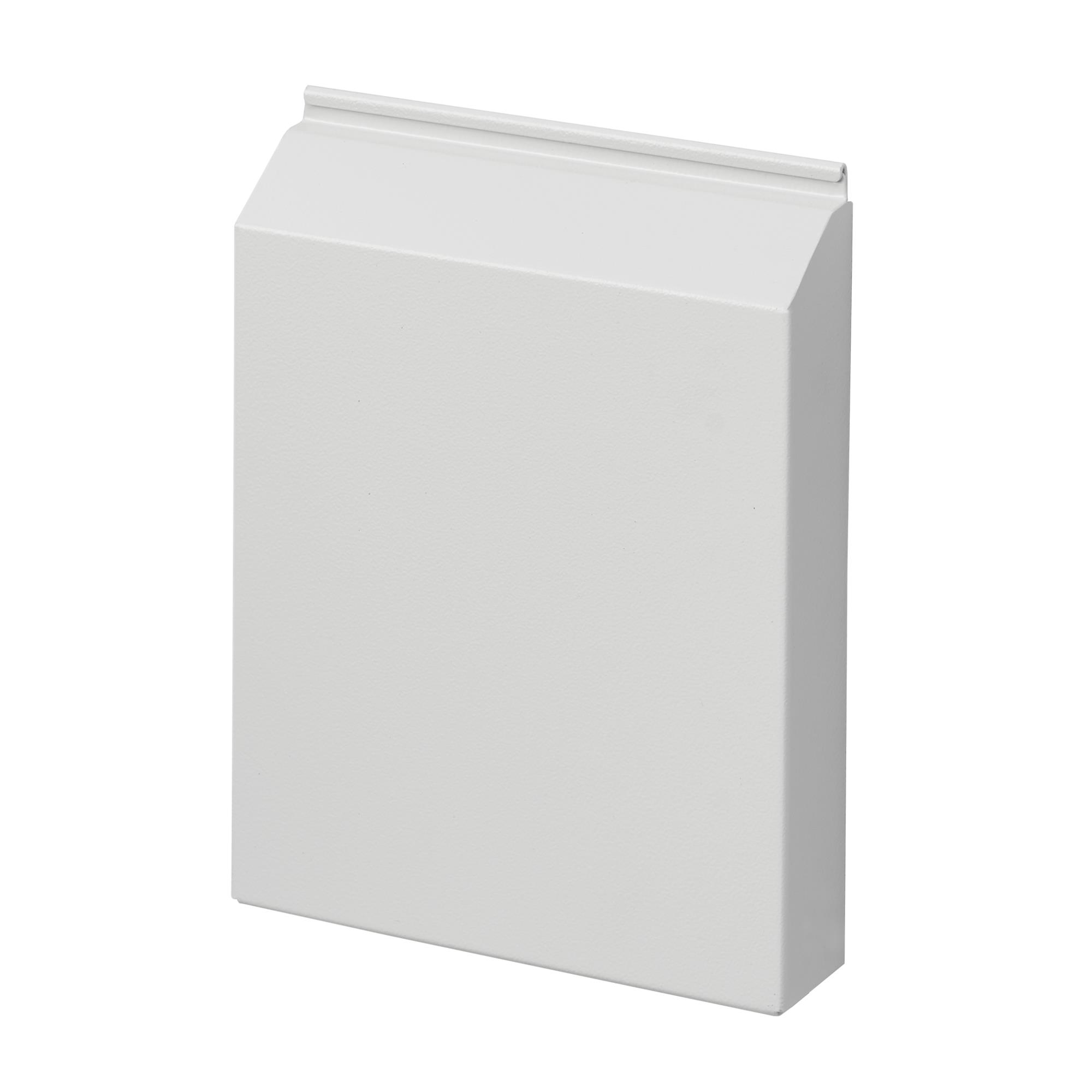

The Hoffman HH10SS04001 is a Type 3R low-profile filter fan shroud constructed from 304 stainless steel. It measures 15 inches in height, 12 inches in width, and 3.81 inches in depth. Designed for outdoor or harsh environments, it protects filter fans and exhaust grills from wind-driven rain and high-pressure hose water without impeding airflow.

Feature Summary

• Protects filter fans and exhaust grills from environmental elements such as wind-driven rain and high-pressure hose water
• Constructed from 304 stainless steel for corrosion resistance
• Low-profile design ensures airflow is not impeded
• Allows easy one-person installation via simple back panel mounting

Applications

• Protection for HF10, ST10, and TFP6 filter fans
• Protection for HG10 and TFP6 exhaust grills
• Outdoor electrical enclosure ventilation systems requiring Type 3R protection

Procurement Notes

Verify compatibility with specific filter fan models (HF10, ST10, TFP6) and exhaust grills (HG10, TFP6) before purchase. Confirm material specification is 304 stainless steel and dimensions match the 15x12x3.81 inch requirement. Ensure the application requires Type 3R protection against wind-driven rain and hose-directed water.

Selection Notes

Select this shroud when protecting Hoffman HH10 series filter fans and compatible grills from weather exposure. The 304 stainless steel construction offers durability in corrosive environments. The low-profile design maintains airflow efficiency while providing necessary environmental sealing for outdoor installations.

Part Context

This component belongs to the nVent Hoffman HH10 series of filter fan accessories. It is specifically designed as a protective shroud for the HH10 family of products, including HF10 and ST10 filter fans. The part number indicates its material composition and dimensional specifications within the Hoffman enclosure accessory catalog.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
