Product Detailed Parameters
- Description：10IN 4X SHROUD 304SS
- Series：*
- Mfr：Hoffman Enclosures, Inc.
- Package：Bulk
Download product information
Overview

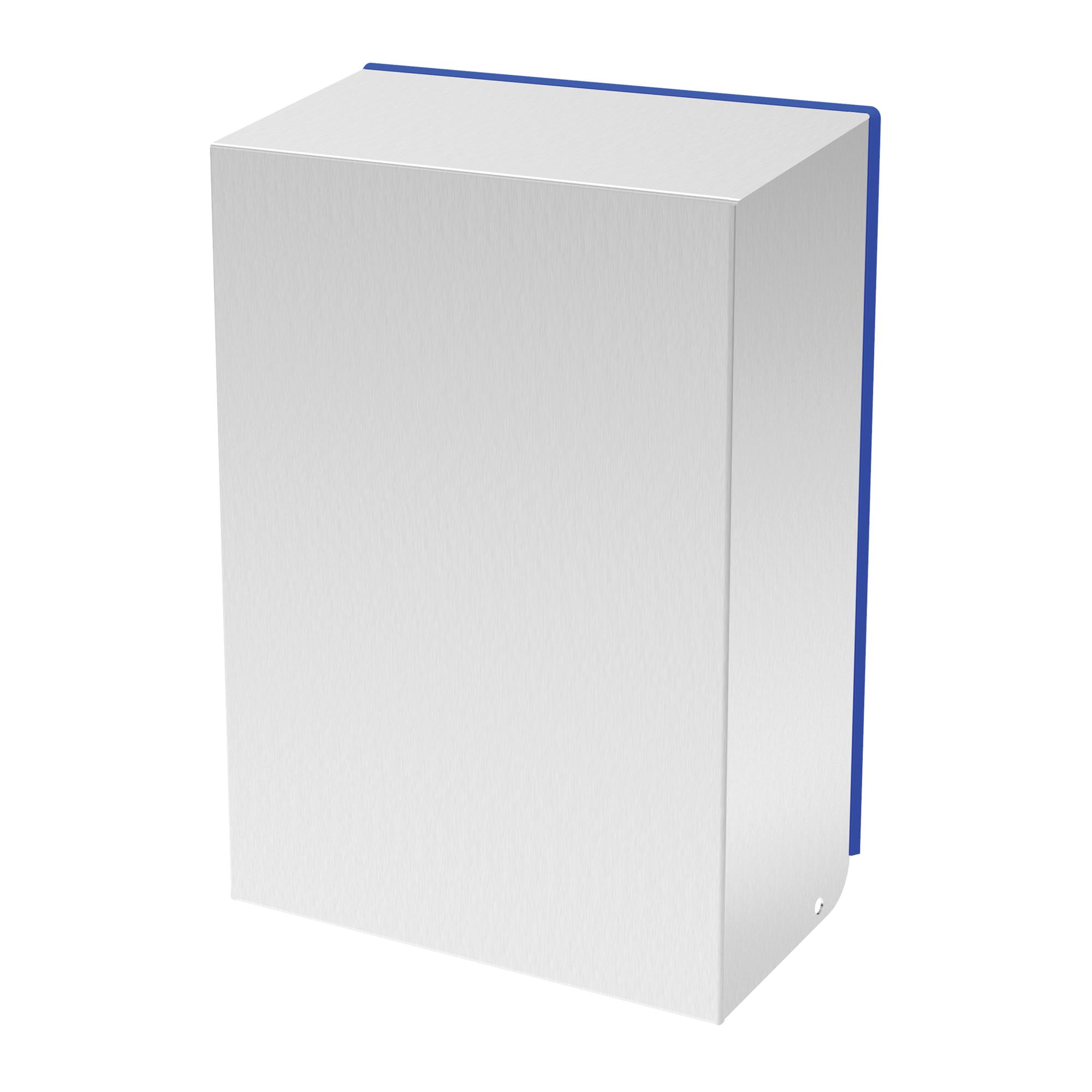

The nVent Hoffman HH10SS04004X is a Type 4/4X filter fan shroud constructed from 304 stainless steel. It measures 16.66 x 11.9 x 5.2 inches (423 x 302 x 132 mm) and is designed for use with HF or HH series filter fans. The unit operates within a temperature range of -40 to 100 degrees Celsius. Its primary function is to protect the filter fan and exhaust grill from standard washdown procedures while maintaining environmental sealing standards.
Feature Summary
- Protects filter fan and exhaust grill from standard washdown procedures
- Meets Type 4/4X environmental standards when used with compatible HF or HH series filter fans
- Constructed from 304 stainless steel for corrosion resistance
Applications
- Industrial electrical enclosures requiring Type 4/4X protection
- Environments subject to standard washdown cleaning procedures
- Cooling systems utilizing HF or HH series filter fans
Procurement Notes
Verify compatibility with specific HF or HH series filter fan models before procurement. Confirm that the installation environment requires Type 4/4X protection standards. Ensure the operating temperature range of -40 to 100 degrees Celsius aligns with site conditions. Check physical dimensions against enclosure specifications to ensure proper fitment.
Selection Notes
Select this shroud only when Type 4/4X protection is required for washdown environments. It must be paired with compatible HF or HH series filter fans to achieve stated performance ratings. Consider 304 stainless steel construction for general corrosion resistance in industrial settings. Verify dimensional constraints within the target enclosure space.
Part Context
This component belongs to the nVent Hoffman HH13 series of cooling accessories. It serves as a protective accessory rather than a standalone cooling device. The product is manufactured by nVent Hoffman, with production originating from Mexico. It is part of a broader ecosystem of enclosure cooling solutions designed for industrial applications.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model.
