HH13MS61004

Overview

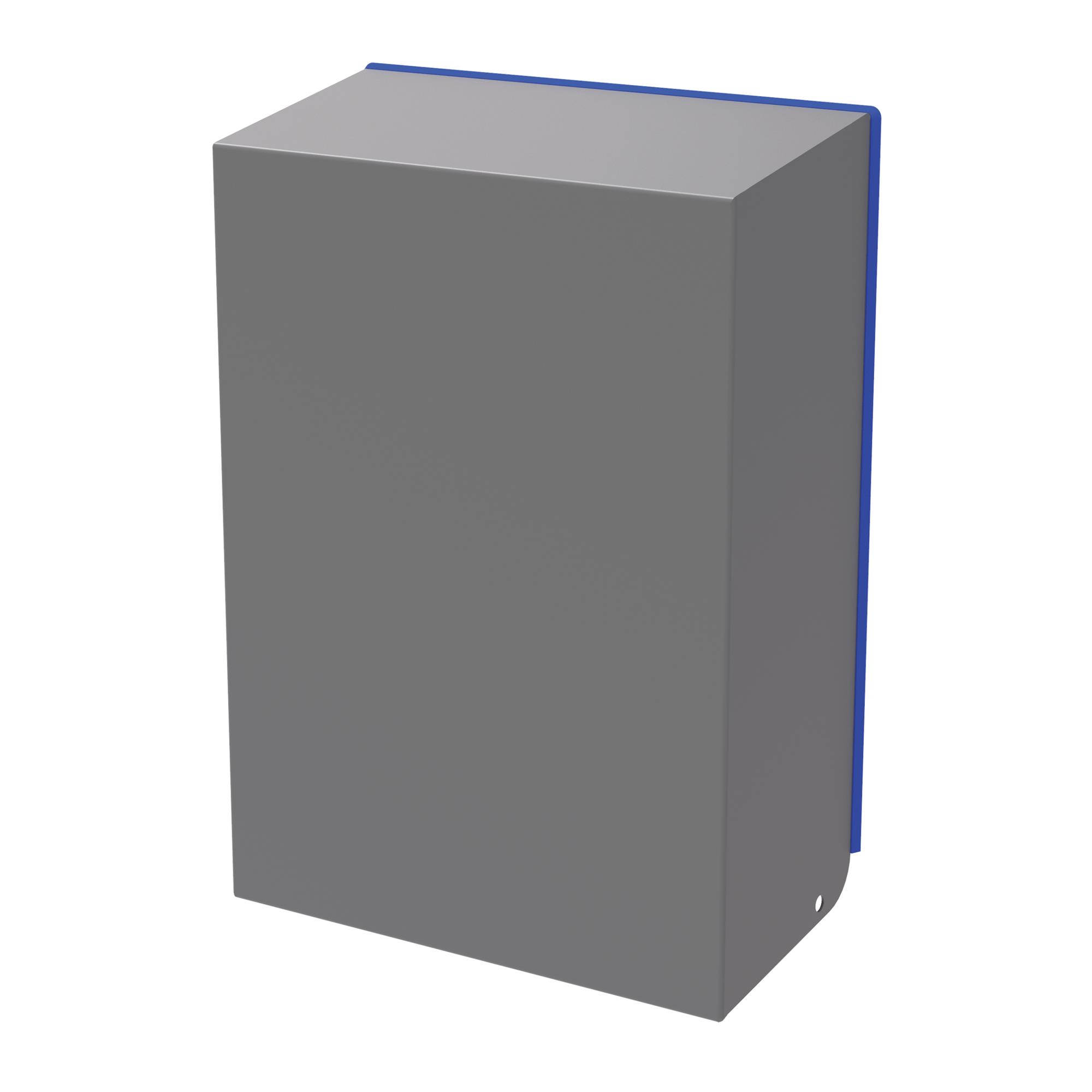

The nVent Hoffman HH13MS61004 is a filter fan shroud constructed from steel with a light gray finish. It measures 20.0 inches by 15.0 inches and is designed to protect filter fans and exhaust grilles from standard washdown procedures. When used with compatible HF or TFP Type 12 units, it meets NEMA Type 4/4X standards for environmental protection.

Feature Summary

• Protects filter fan and exhaust grill from standard washdown procedures
• Meets Type 4/4X standards when used with specified compatible units

Applications

• Protection of HF13 series filter fans
• Protection of HG13 series exhaust grilles
• Compatibility with TFP101UL12 side-mount fans
• Compatibility with TFP102UL12 side-mount fans

Procurement Notes

Verify compatibility with specific HF or TFP Type 12 filter fans and grilles before procurement. Confirm that the installation environment requires Type 4/4X protection standards. Ensure the physical dimensions of 20.0 inches by 15.0 inches fit the intended enclosure space. Check for any specific mounting requirements associated with the selected fan model.

Selection Notes

Select this shroud only if Type 4/4X protection against washdown is required. Ensure the existing filter fan belongs to the HF13, HG13, or TFP series. Verify that the steel construction and gray color meet aesthetic or corrosion resistance needs. Confirm that the 20x15 inch footprint aligns with the enclosure design constraints.

Part Context

This component is part of the nVent Hoffman HH13 series of filter fan shrouds. It serves as an accessory to enhance the environmental rating of specific filter fan models. The product is manufactured in the United States and is made of mild steel. It is distinct from the filter fans themselves, serving solely as a protective housing.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
