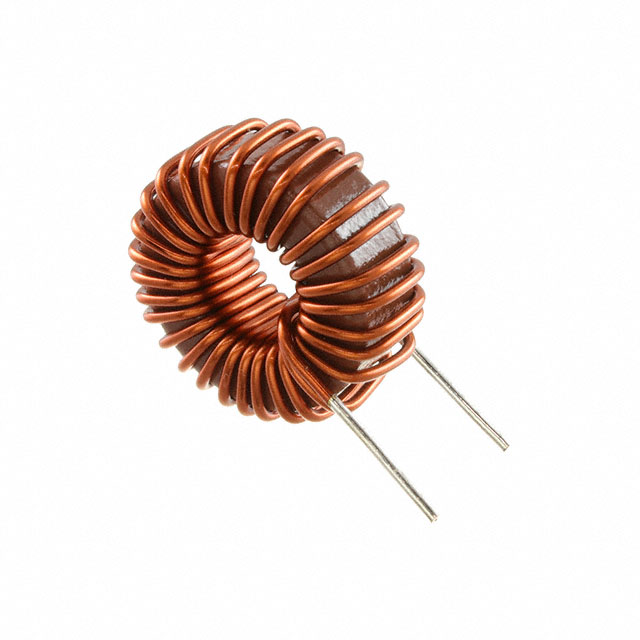

HHBC10-0R8A0038V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 38UH 3A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for HHBC10-0R8A0038V
- Description：CMC 38UH 3A 2LN TH
- Series：HHBC
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：31.2mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.846" Dia (21.50mm)
- Height (Max)：-
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：38 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for HHBC10-0R8A0038V
Common Mode Chokes Overview
The KEMET HHBC10-0R8A0038V is a fixed toroidal power inductor from the HHBC series, designed for through-hole mounting. It features an inductance of 38 µH with a tolerance of ±20%. The component supports a maximum DC current of 3 A and exhibits a maximum DC resistance of 31.2 mΩ. It operates within a temperature range of -40 °C to +125 °C and is tested at 100 kHz. The unit utilizes ferrite core material and radial leads with a 7 mm spacing.
Common Mode Chokes Feature Summary
- Utilizes a ferrite toroidal core structure for efficient magnetic flux containment
- Designed for high-current applications with a 3 A saturation rating
- Features low DC resistance to minimize power loss in power supply circuits
Common Mode Chokes Applications
- DC-DC converter output filtering
- Power supply input chokes
- General-purpose electronic equipment filtering
Common Mode Chokes Procurement Notes
Verify the specific part number against official KEMET documentation to confirm electrical parameters, as distributor listings may contain discrepancies regarding current ratings or resistance values. Ensure compatibility with PCB layout requirements for radial lead spacing and verify RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.
Common Mode Chokes Selection Notes
Select this component when a 38 µH inductance value is required with a minimum 3 A current handling capability. Consider the physical dimensions and radial lead configuration for mechanical fitment on the target printed circuit board. Evaluate the thermal performance characteristics relative to the operating environment to ensure reliable operation within the specified temperature range.
Common Mode Chokes Part Context
This component belongs to the KEMET HHBC series of fixed power inductors. The series is characterized by toroidal geometry and through-hole construction, offering robust performance for general commercial electronics. The HHBC line provides various inductance values tailored for different power management applications requiring stable inductive properties.
Common Mode Chokes Replacement Considerations
Cross-reference with other KEMET HHBC series variants for alternative inductance values. Verify that any substitute maintains equivalent current ratings, DC resistance limits, and physical footprint constraints to ensure seamless integration into existing designs.
