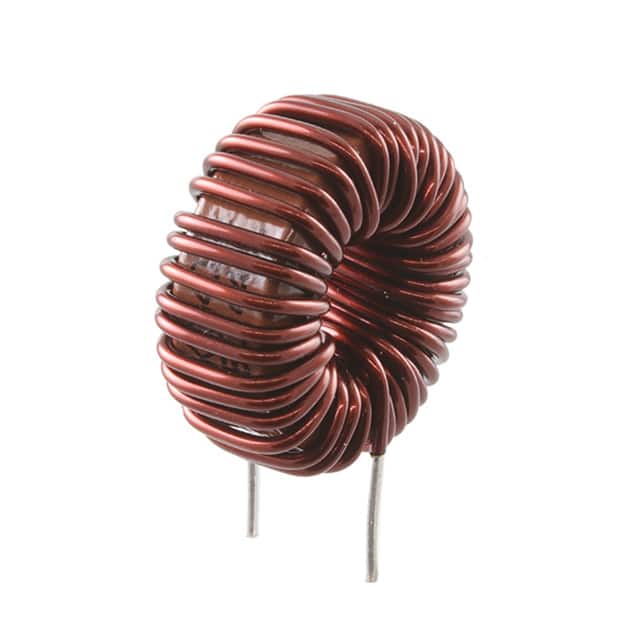

HHBC13-1R2A0045V is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists KEMET. Its product description is CMC 45UH 6A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for HHBC13-1R2A0045V
- Description：CMC 45UH 6A 2LN TH
- Series：HHBC
- Mfr：KEMET
- Package：Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：6A
- DC Resistance (DCR) (Max)：18.3mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.181" Dia (30.00mm)
- Height (Max)：1.181" (30.00mm)
- Package / Case：Vertical, No Base, 2 PC Pin
- Inductance @ Frequency：45 µH @ 100 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for HHBC13-1R2A0045V
Common Mode Chokes Overview
The KEMET HHBC13-1R2A0045V is a through-hole power inductor from the HHBC series, designed for AC line filtering applications. It features a nominal inductance of 45 µH with a tolerance of ±20%. The component supports a maximum DC current of 5 A and exhibits a maximum DC resistance of 18.3 mΩ. It operates within a temperature range of -40°C to +125°C. The device utilizes a radial leaded package with a maximum height of 14.9 mm and a maximum diameter of 30 mm, suitable for standard PCB mounting.
Common Mode Chokes Feature Summary
- Provides normal mode noise suppression for AC line filters
- Supports high current handling up to 5 A
- Features low DC resistance for efficient power transmission
Common Mode Chokes Applications
- AC line filter circuits
- Normal mode noise suppression
- Power supply input stages
Common Mode Chokes Procurement Notes
Verify the manufacturer part number HHBC13-1R2A0045V against official KEMET documentation to confirm specifications. Ensure compatibility with required current ratings and physical dimensions before integration. Check for RoHS compliance status as indicated in the datasheet. Confirm availability and lead times directly with authorized distributors or the manufacturer.
Common Mode Chokes Selection Notes
Select this component when designing AC line filters requiring normal mode choke functionality. Consider the 5 A current rating and 18.3 mΩ resistance for efficiency requirements. Verify that the radial leaded package fits the PCB layout constraints. Compare performance against similar HHBC series parts if different inductance values are needed.
Common Mode Chokes Part Context
This inductor belongs to the KEMET HHBC series, which offers various inductance values for power line filtering. The HHBC series is characterized by its robust construction and suitability for general-purpose AC line applications. It complements other EMI suppression components in power electronics designs.
Common Mode Chokes Replacement Considerations
Check for direct substitutes within the HHBC series with matching 45 µH inductance and 5 A current rating. Verify pinout and dimensional compatibility before substitution.
