HI1612X560R-10

Chip Ferrite Bead Overview

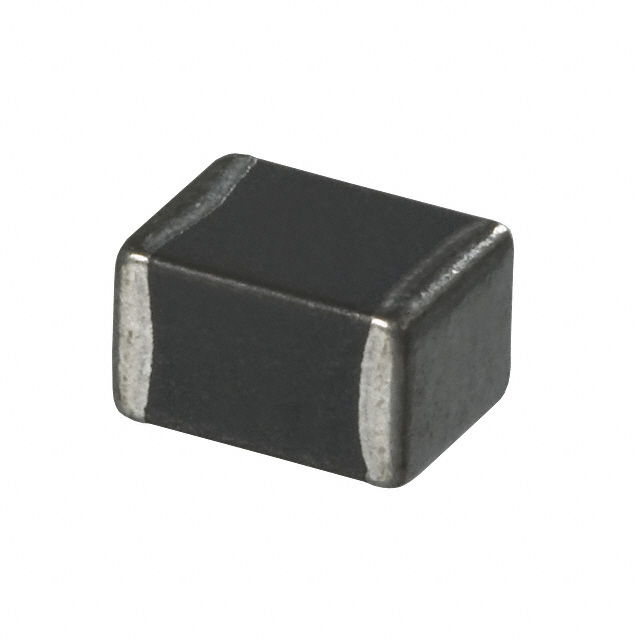

The HI1612X560R-10 is a high-current ferrite chip bead from the HI series, designed for EMI filtering and RF inductor applications. It features a 1612 (4131 metric) surface-mount package with dimensions of 4.1 mm length, 3.1 mm width, and 2.28 mm maximum height. The component provides an impedance of 56 Ohms at 100 MHz and supports a maximum rated current of 10 A. Its maximum DC resistance (DCR) is 4 mOhms. It operates within a temperature range of -55°C to +125°C.

Chip Ferrite Bead Feature Summary

• High current handling capability up to 10 A
• Low DC resistance for minimal power loss
• Monolithic construction for reliability

Chip Ferrite Bead Applications

• Power line filtering
• Signal line filtering
• RF inductor applications

Chip Ferrite Bead Procurement Notes

Verify RoHS compliance status through official datasheets as specifications may vary by revision. Confirm package dimensions and terminal compatibility with PCB footprints. Check for lead-free plating requirements if applicable to assembly processes. Ensure operating temperature ratings meet environmental constraints. Validate impedance characteristics against specific frequency noise profiles.

Chip Ferrite Bead Selection Notes

Select this component for circuits requiring significant current capacity alongside effective high-frequency noise suppression. The low DCR minimizes voltage drop across the filter. Consider the 1612 footprint size relative to available board space. Evaluate thermal management needs given the 10 A rating and ambient operating conditions.

Chip Ferrite Bead Part Context

This part belongs to Laird-Signal Integrity Products' HI series of high-current ferrite beads. These components are engineered for robust performance in demanding electronic environments. The series offers various impedance values and current ratings to suit diverse filtering requirements across consumer, industrial, and automotive electronics.

Chip Ferrite Bead Replacement Considerations

Direct substitutes include other 1612 ferrite beads with similar 56 Ohm impedance and 10 A current ratings. Verify equivalent DCR and physical dimensions before substitution. Alternative manufacturers may offer comparable performance but require validation of material properties and mounting compatibility.
