HI2220P601R-10

Chip Ferrite Bead Overview

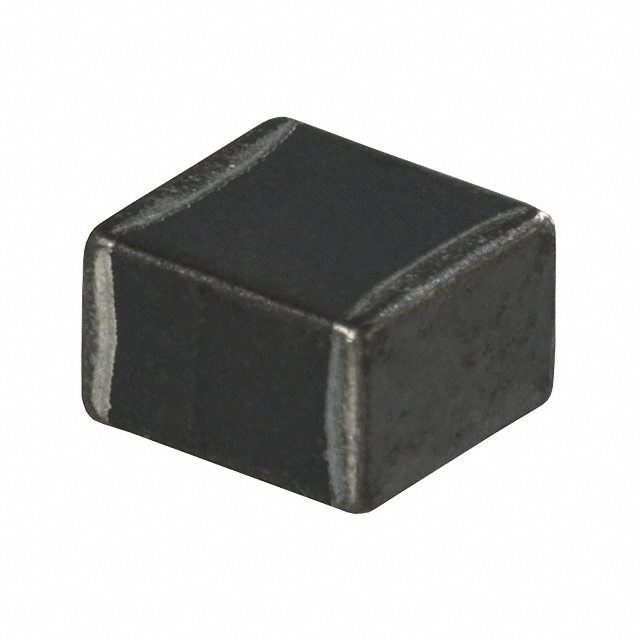

The HI2220P601R-10 is a single-line ferrite bead from the Laird-Signal Integrity Products HI series, designed for surface-mount installation in a 2220 (5650 metric) package. It provides an impedance of 600 Ohms at 100 MHz with a maximum DC resistance of 25 milliohms and a rated current of 4 Amperes. The component operates within a temperature range of -40°C to 125°C and measures 5.59mm by 5.08mm.

Chip Ferrite Bead Feature Summary

• Monolithic construction optimized for power line filtering applications
• High current handling capability suitable for dense circuit layouts
• Low DC resistance minimizes voltage drop across the component

Chip Ferrite Bead Applications

• Power supply input filtering
• DC-DC converter output stages
• General EMI suppression on high-current traces

Chip Ferrite Bead Procurement Notes

Verify the specific suffix 'P' against official datasheets to confirm it denotes the standard power variant rather than a specialized configuration. Confirm RoHS3 compliance status as required by your assembly specifications. Ensure the 2220 footprint matches your PCB design constraints before finalizing procurement orders.

Chip Ferrite Bead Selection Notes

Select this component when a 600 Ohm impedance at 100 MHz is required for noise attenuation. The 4A rating supports high-power circuits where lower impedance beads would saturate. The 2220 package offers a balance between current capacity and board space efficiency compared to smaller footprints.

Chip Ferrite Bead Part Context

This part belongs to the HI series of high-current ferrite chip beads manufactured by Laird-Signal Integrity Products. The series utilizes monolithic technology to provide reliable EMI filtering in compact surface-mount packages. The HI2220 designation indicates the specific 2220 case size used for higher current applications within this product family.

Chip Ferrite Bead Replacement Considerations

Consult the manufacturer's part number guide for direct equivalents. Verify that any substitute maintains the 600 Ohm impedance at 100 MHz and meets or exceeds the 4A current rating. Ensure the replacement component fits the 2220 footprint and operates within the same temperature range.
