HI3312X101R-10

Chip Ferrite Bead Overview

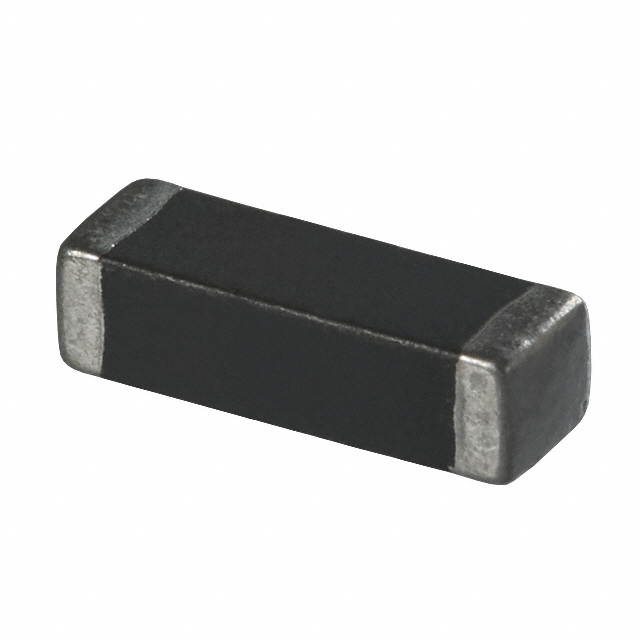

The HI3312X101R-10 is a single-line surface-mount ferrite bead manufactured by Laird-Signal Integrity Products. It features a 3312 (8531 Metric) package with dimensions of 0.335 inches in length and 0.126 inches in width. The component provides an impedance of 100 Ohms at 100 MHz and supports a maximum rated current of 10 Amperes. Its maximum DC resistance is specified as 4 milliohms, ensuring minimal signal loss in high-current applications.

Chip Ferrite Bead Feature Summary

• Engineered for effective EMI filtering on power lines
• Capable of handling high continuous current loads
• Utilizes low-resistance design to minimize voltage drop

Chip Ferrite Bead Applications

• Power line filtering in electronic circuits
• RFI suppression in high-current signal paths
• EMI mitigation in industrial equipment power supplies

Chip Ferrite Bead Procurement Notes

Verify the exact manufacturer part number against official Laird-Signal Integrity Products documentation before procurement. Confirm that the 3312 package size and 10A current rating align with specific circuit requirements. Ensure compatibility with surface-mount assembly processes and check for any specific handling instructions regarding high-current components.

Chip Ferrite Bead Selection Notes

Select this component when high current capacity is required alongside moderate impedance values. The 10A rating distinguishes it from lower-current alternatives. Verify that the 100 Ohm impedance at 100 MHz meets the target noise frequency spectrum. Ensure the PCB footprint accommodates the larger 3312 physical dimensions compared to standard chip beads.

Chip Ferrite Bead Part Context

This ferrite bead belongs to Laird-Signal Integrity Products' lineup of passive components designed for electromagnetic interference suppression. It serves as a critical element in maintaining signal integrity within power distribution networks. The component functions by dissipating high-frequency noise energy as heat while allowing DC and low-frequency signals to pass with minimal attenuation.

Chip Ferrite Bead Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
