HIF3BA-40PA-2.54WB(71)

Headers, Male Pins Overview

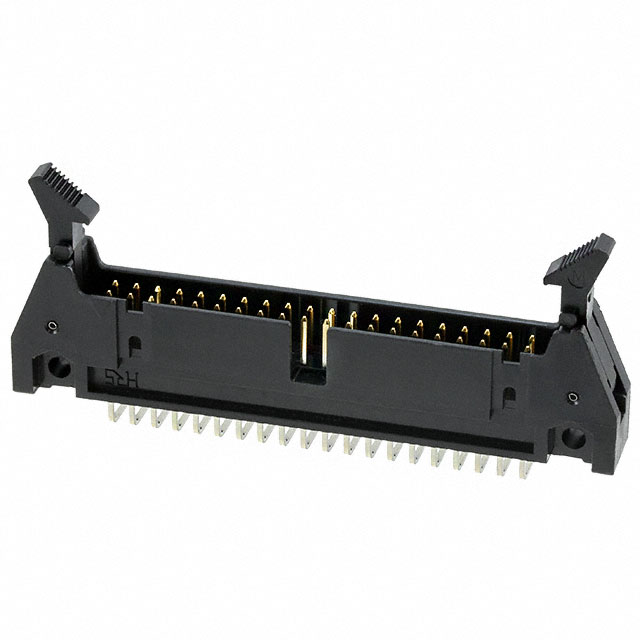

The HIF3BA-40PA-2.54WB(71) is a 40-position, two-row shrouded pin header from the Hirose HIF3B series. Designed for board-to-cable connections, it features a 2.54 mm (0.1 in) pitch and right-angle through-hole mounting. The connector utilizes gold-plated brass contacts rated for 1 A current and 200 V voltage. It operates within a temperature range of -55°C to +85°C and includes a four-wall shroud with keying slots for secure mating.

Headers, Male Pins Feature Summary

• MIL Standard-compliant ribbon cable connector design
• Four-wall shrouded housing with keying slots
• Right-angle through-hole termination
• Gold-plated contact surfaces

Headers, Male Pins Applications

• Ribbon cable interconnections
• Board-to-cable wiring systems
• Military standard electronic assemblies
• Industrial control panel connections

Headers, Male Pins Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm that the specific suffix matches the required MIL standard compliance and physical dimensions. Ensure storage conditions maintain integrity prior to soldering.

Headers, Male Pins Selection Notes

Select this model when MIL standard compliance is mandatory for ribbon cable applications. The right-angle configuration aids in space-constrained PCB layouts. Verify that the 2.54 mm pitch aligns with existing cable harness specifications.

Headers, Male Pins Part Context

This component belongs to the HIF3B series, which provides robust rectangular connectors for demanding environments. The series offers various position counts and mounting styles, ensuring compatibility across diverse industrial and military electronic systems requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

HIF3BA-40PA-2.54DSA(72)
