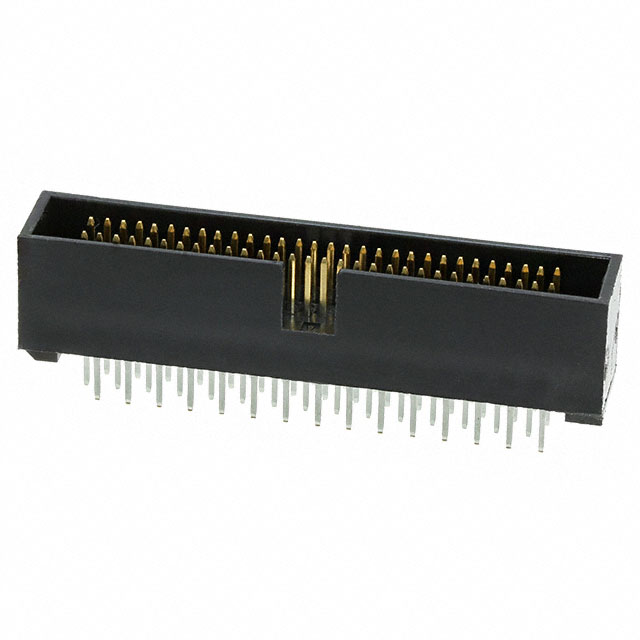

HIF6A-60PA-1.27DSA(71)

HIF6A-60PA-1.27DSA(71) is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN HEADER VERT 60POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for HIF6A-60PA-1.27DSA(71)

• Description：CONN HEADER VERT 60POS 1.27MM
• Series：HIF6
• Mfr：Hirose Electric Co Ltd
• Package：Tray
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：60
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.205" (5.21mm)
• Contact Length - Post：0.110" (2.79mm)
• Overall Contact Length：-
• Insulation Height：0.453" (11.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：8.00µin (0.203µm)
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polybutylene Terephthalate (PBT)
• Features：Keying Slot
• Operating Temperature：-55°C ~ 85°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：0.5A
• Voltage Rating：300V

Headers, Male Pins datasheet and documents for HIF6A-60PA-1.27DSA(71)
