HK160815NJ-T

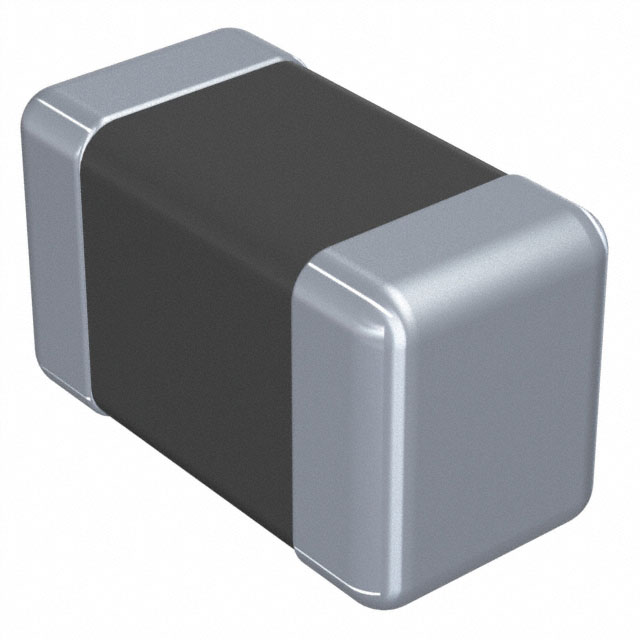

Description：FIXED IND 15NH 300MA 320MOHM SMD
Series：HK
Mfr：Taiyo Yuden
Package：Tape & Reel (TR)

SKU:5e973055562f Category: Fixed Inductors Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HK160815NJ-T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FIXED IND 15NH 300MA 320MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for HK160815NJ-T

Description：FIXED IND 15NH 300MA 320MOHM SMD
Series：HK
Mfr：Taiyo Yuden
Package：Tape & Reel (TR)
Type：Multilayer
Material - Core：Ferrite
Inductance：15 nH
Tolerance：±5%
Current Rating (Amps)：300 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：320mOhm Max
Q @ Freq：12 @ 100MHz
Frequency - Self Resonant：2.3GHz
Ratings：-
Operating Temperature：-40°C ~ 85°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric)
Supplier Device Package：0603 (1608 Metric)
Size / Dimension：0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)：0.037" (0.95mm)
Features：-

Fixed Inductors datasheet and documents for HK160815NJ-T

HK160815NJ-T

Fixed Inductors Overview

The Taiyo Yuden HK160815NJ-T is a fixed multilayer chip inductor designed for high-frequency applications. It features an inductance of 15 nH with a tolerance of ±5%. The component has a maximum DC resistance (DCR) of 320 mΩ and supports a rated current of 300 mA. It utilizes a ferrite core material and is unshielded. The device operates within a temperature range of -55°C to +125°C and is housed in a standard 0603 (1608 Metric) surface-mount package measuring 1.60mm x 0.80mm.

Fixed Inductors Feature Summary

High-frequency multilayer construction suitable for RF circuits
Automotive-grade thermal stability with extended operating temperature range
Unshielded design minimizes parasitic effects in high-speed signals

Fixed Inductors Applications

RF matching networks in automotive electronics
High-frequency signal filtering in mobile devices
Power supply decoupling in compact PCB layouts

Fixed Inductors Procurement Notes

Verify the specific suffix designation, as the 'TV' variant indicates automotive qualification while the base model may differ. Confirm RoHS compliance status and moisture sensitivity level prior to assembly. Check for obsolescence notices or lifecycle changes from the manufacturer. Ensure the selected distributor provides valid traceability documentation for quality assurance purposes.

Fixed Inductors Selection Notes

Select this component when a low-inductance value near 15 nH is required for impedance matching at high frequencies. Consider the 300 mA current rating against peak load requirements. The unshielded nature requires careful layout to prevent crosstalk. Compare DCR specifications against similar packages if power loss is a critical constraint.

Fixed Inductors Part Context

This part belongs to the HK series of high-frequency multilayer chip inductors manufactured by Taiyo Yuden. The series is engineered for demanding environments, including automotive applications requiring robust thermal performance. The 0603 footprint allows for dense board placement while maintaining reliable solder joint integrity under thermal cycling conditions.
