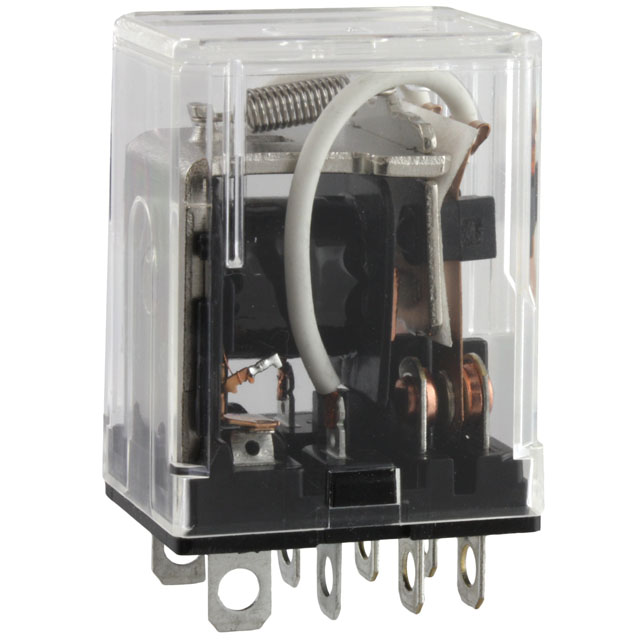

Power Relays, Over 2 Amps HL2-H-AC48V product image

HL2-H-AC48V

Description：RELAY GEN PURPOSE DPDT 10A 48V
Series：HL
Mfr：Panasonic Electric Works
Package：Bulk

SKU:7b1003f3bd61 Category: Power Relays, Over 2 Amps Brand: Panasonic Electric Works

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HL2-H-AC48V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE DPDT 10A 48V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for HL2-H-AC48V

Description：RELAY GEN PURPOSE DPDT 10A 48V
Series：HL
Mfr：Panasonic Electric Works
Package：Bulk
Mounting Type：Socketable
Coil Voltage：48VAC
Contact Form：DPDT (2 Form C)
Contact Rating (Current)：10:00 AM
Switching Voltage：125VAC - Nom
Load - Max Switching：-
Coil Current：25 mA
Coil Type：Non Latching
Features：-
Termination Style：Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating：-
Coil Insulation：-
Must Operate Voltage：38.4 VAC
Must Release Voltage：14.4 VAC
Operating Temperature：-50°C ~ 70°C
Contact Material：Silver Alloy
Approval Agency：cURus, TUV
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：10 ms
Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for HL2-H-AC48V

HL2-H-AC48V
