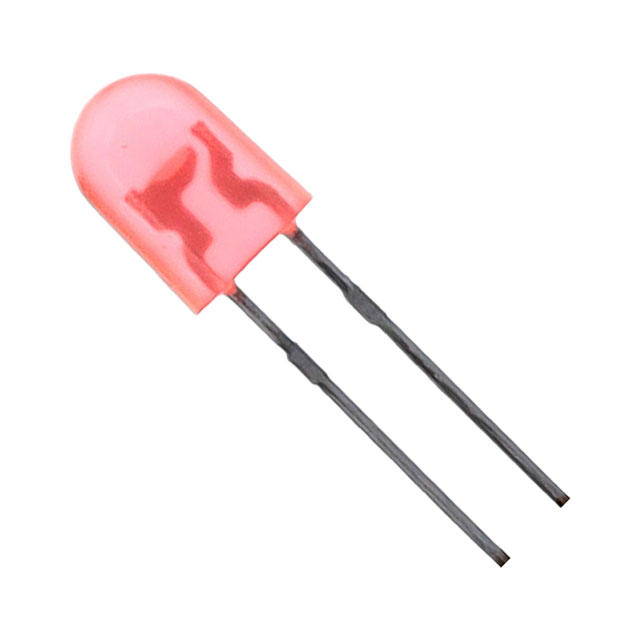

HLMP-HG74-XY0DD

$0.84

Description：LED RED DIFFUSED 5MM OVAL T/H
Series：-
Mfr：Broadcom Limited
Package：Cut Tape (CT),Tape & Box (TB)

SKU:07c481dccb12 Category: LED Indication - Discrete Brand: Broadcom Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HLMP-HG74-XY0DD is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Broadcom Limited. Its product description is LED RED DIFFUSED 5MM OVAL T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for HLMP-HG74-XY0DD

Description：LED RED DIFFUSED 5MM OVAL T/H
Series：-
Mfr：Broadcom Limited
Package：Cut Tape (CT),Tape & Box (TB)
Color：Red
Configuration：Standard
Lens Color：Red
Lens Transparency：Diffused
Millicandela Rating：2030mcd
Lens Style：Oval with Domed Top
Lens Size：5.20mm x 3.80mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：100°, 40°
Mounting Type：Through Hole
Wavelength - Dominant：626nm
Wavelength - Peak：634nm
Features：-
Package / Case：Radial
Supplier Device Package：5mm Oval
Size / Dimension：-
Height (Max)：7.00mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for HLMP-HG74-XY0DD

HLMP-HG74-XY0DD

LED Indication - Discrete Overview

The HLMP-HG74-XY0DD is a discontinued single-color red LED from the Broadcom HLMP-HG series. It utilizes AlInGaP technology with a diffused lens and operates at a peak wavelength of 634nm (dominant 626nm). The component features a radial through-hole package in a 5mm oval form factor, measuring 5.20mm x 3.80mm with a maximum height of 7.00mm. It delivers an intensity of 2030 mcd at a forward voltage of 2.1V and a test current of 20mA. The viewing angles are specified as 100° and 40°. RoHS compliant and MSL Level 1.

LED Indication - Discrete Feature Summary

Diffused red light emission for broad visibility
Radial through-hole mounting for standard PCB integration
Oval lens geometry providing specific beam distribution

LED Indication - Discrete Applications

Panel status indicators
Equipment power state signaling
Control board visual feedback

LED Indication - Discrete Procurement Notes

This component is officially End-of-Life (EOL) with discontinuance notifications issued in July 2024 and July 2025. Availability is restricted to remaining stock only; no new manufacturing occurs. Verify expiration dates on existing inventory carefully. Sourcing should focus on authorized distributors holding legacy stock or approved replacement parts to ensure supply chain continuity and compliance.

LED Indication - Discrete Selection Notes

Designers must account for the EOL status when selecting this part. The HLMP-HG64-VY0DD is identified as a parameter-equivalent alternative within the same manufacturer portfolio. Selection requires confirming that the 5mm oval footprint and electrical characteristics of the substitute match the original design constraints without requiring mechanical rework.

LED Indication - Discrete Part Context

Part of the HLMP-HG series of 5mm oval LEDs. Manufactured by Broadcom Limited using AlInGaP material. The product line targets general indication applications requiring high visibility in a compact radial package. This specific suffix denotes the red diffused variant with standard electrical ratings.
