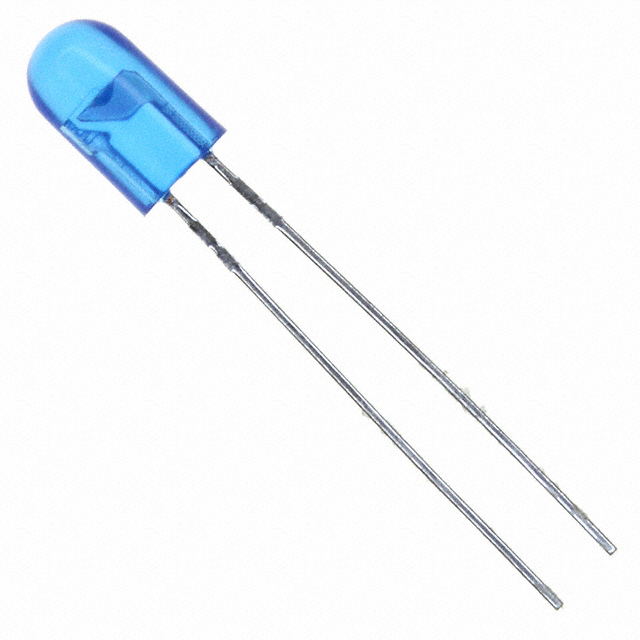

HLMP-LB72-UWPZZ is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Broadcom Limited. Its product description is LED BLUE 4MM OVAL T/H. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for HLMP-LB72-UWPZZ
- Description：LED BLUE 4MM OVAL T/H
- Series：-
- Mfr：Broadcom Limited
- Package：Bulk
- Color：Blue
- Configuration：Standard
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：-
- Lens Style：-
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：-
- Current - Test：-
- Viewing Angle：40° x 100°
- Mounting Type：Through Hole
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：Radial
- Supplier Device Package：4mm Oval
- Size / Dimension：3.80mm L x 3.00mm W
- Height (Max)：7.46mm
LED Indication - Discrete datasheet and documents for HLMP-LB72-UWPZZ
LED Indication - Discrete Overview
The HLMP-LB72-UWPZZ is a blue light-emitting diode manufactured by Broadcom Limited. It features a 4mm oval lens design intended for through-hole mounting applications. The component is classified as an obsolete product and is no longer in active manufacturing. It complies with RoHS standards, indicating lead-free construction. The unit serves as a discrete indicator element within electronic assemblies.
LED Indication - Discrete Feature Summary
- Blue light emission for visual indication
- 4mm oval lens configuration
- Through-hole mounting technology
LED Indication - Discrete Applications
- Electronic equipment status indicators
- Panel mount signal visualization
- Discrete circuit monitoring
LED Indication - Discrete Procurement Notes
This component is officially obsolete and no longer manufactured by Broadcom Limited. Procurement must rely on available substitute parts or verified surplus stock from authorized distributors. Verify RoHS compliance and physical dimensions when selecting alternatives to ensure mechanical fit and regulatory adherence.
LED Indication - Discrete Selection Notes
Due to the obsolete status of this specific part number, direct replacement is not possible through standard new production channels. Engineers should evaluate current available substitutes that match the 4mm oval form factor and blue emission spectrum. Ensure the selected alternative maintains compatible electrical characteristics and mounting requirements for the existing design.
LED Indication - Discrete Part Context
The HLMP-LB72-UWPZZ belongs to the Broadcom Limited discrete LED portfolio. It was designed for general-purpose visual indication tasks requiring a compact through-hole package. As an obsolete item, it represents a legacy solution in industrial and consumer electronics where blue status lighting was previously specified.
