HLMP3316

LED Indication - Discrete Overview

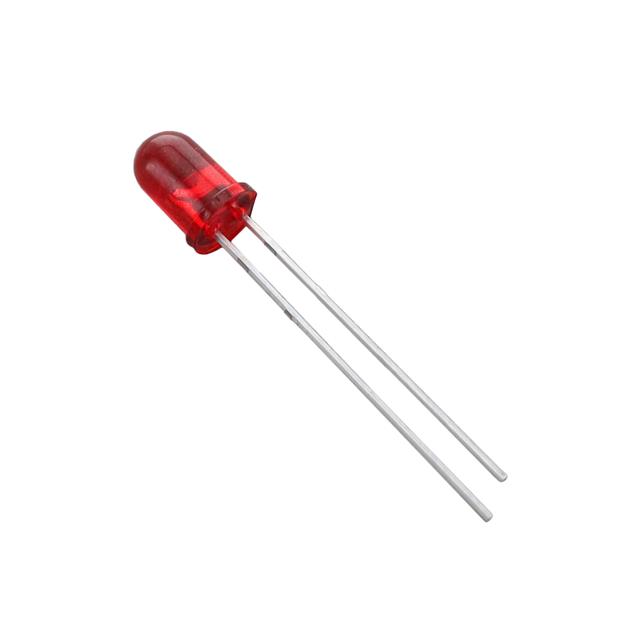

The HLMP3316 is a single-color, high-efficiency red light-emitting diode manufactured by Everlight Electronics. It features a diffused T-1 3/4 (5mm) plastic package with radial mounting capability. The device emits red light and operates within a temperature range of -55 °C to +100 °C. Key electrical parameters include a maximum forward current of 0.03 A, a maximum forward voltage of 3 V, and a nominal luminous intensity of 35.0 mcd. The component has a total height of 8.64 mm and complies with RoHS standards.

LED Indication - Discrete Feature Summary

• High efficiency red emission in a standard 5mm diffused package
• Radial mount configuration for through-hole circuit board integration
• Wide operating temperature range suitable for diverse environmental conditions

LED Indication - Discrete Applications

• Indicator lights for electronic equipment panels
• Status indication in control systems
• Visual signaling in consumer appliances

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Everlight or authorized distributors before procurement. Confirm that the radial lead form matches the target PCB layout requirements. Ensure thermal management strategies align with the specified maximum junction temperature limits during operation.

LED Indication - Discrete Selection Notes

Select this component when a standard 5mm red indicator is required with high visibility. Consider the 0.03 A maximum forward current limit for driver circuit design. Verify that the diffused lens type provides the necessary viewing angle for the application. Check compatibility with automated insertion processes if mass production is planned.

LED Indication - Discrete Part Context

The HLMP3316 belongs to Everlight's standard discrete LED portfolio, designed for general-purpose indication. It utilizes AlGaInP technology for red emission. This series is widely used in industrial and consumer electronics where reliable visual feedback is essential. The part represents a legacy option for through-hole assembly designs.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Everlight for current equivalent recommendations as product lifecycles may have changed.
