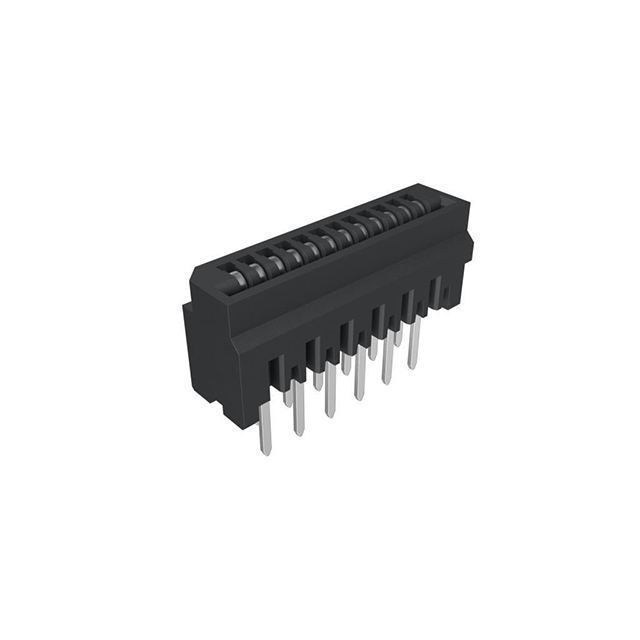

FFC, FPC (Flat Flexible) Connector Assemblies HLW12S-2A7LF product image

HLW12S-2A7LF

Description：CONN FFC FPC VERT 12POS 1MM PCB
Series：HLW-S
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:99b0c114836c Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HLW12S-2A7LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC VERT 12POS 1MM PCB. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for HLW12S-2A7LF

Description：CONN FFC FPC VERT 12POS 1MM PCB
Series：HLW-S
Mfr：Amphenol ICC (FCI)
Package：Tray
Flat Flex Type：FFC, FPC
Mounting Type：Through Hole
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：12
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.33mm
Height Above Board：0.232" (5.90mm)
Locking Feature：-
Cable End Type：-
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material：-
Features：-
Voltage Rating：100V
Operating Temperature：-55°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for HLW12S-2A7LF
