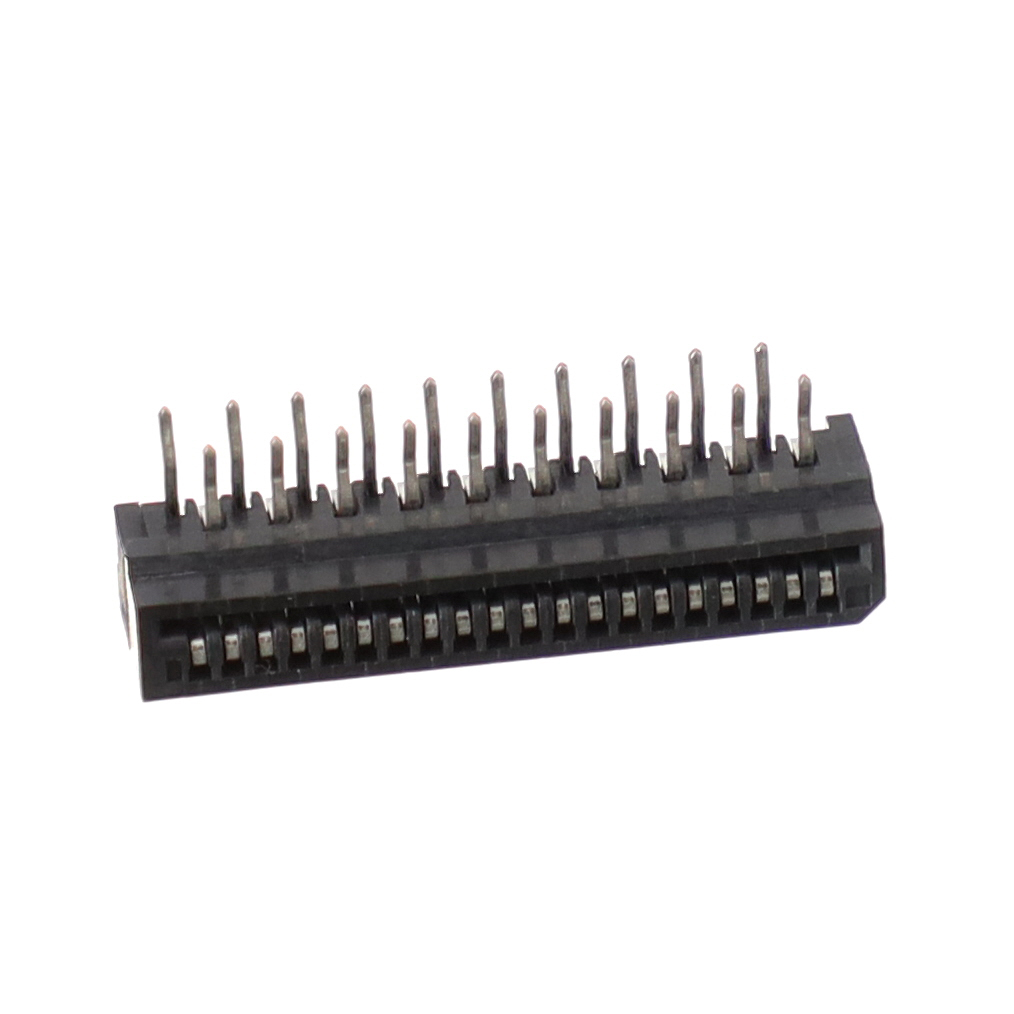

FFC, FPC (Flat Flexible) Connector Assemblies HLW20R-2C7LF product image

HLW20R-2C7LF

$0.26

Description：CONN FFC FPC TOP 20POS 1MM R/A
Series：HLW-R
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:4a8f814b7fc3 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HLW20R-2C7LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC TOP 20POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for HLW20R-2C7LF

Description：CONN FFC FPC TOP 20POS 1MM R/A
Series：HLW-R
Mfr：Amphenol ICC (FCI)
Package：Tray
Flat Flex Type：FFC, FPC
Mounting Type：Through Hole, Right Angle
Connector/Contact Type：Contacts, Top
Number of Positions：20
Pitch：0.039" (1.00mm)
Termination：Kinked Pin
FFC, FCB Thickness：0.30mm, 0.33mm
Height Above Board：0.154" (3.90mm)
Locking Feature：-
Cable End Type：Straight, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material：-
Features：-
Voltage Rating：100V
Operating Temperature：-55°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for HLW20R-2C7LF
