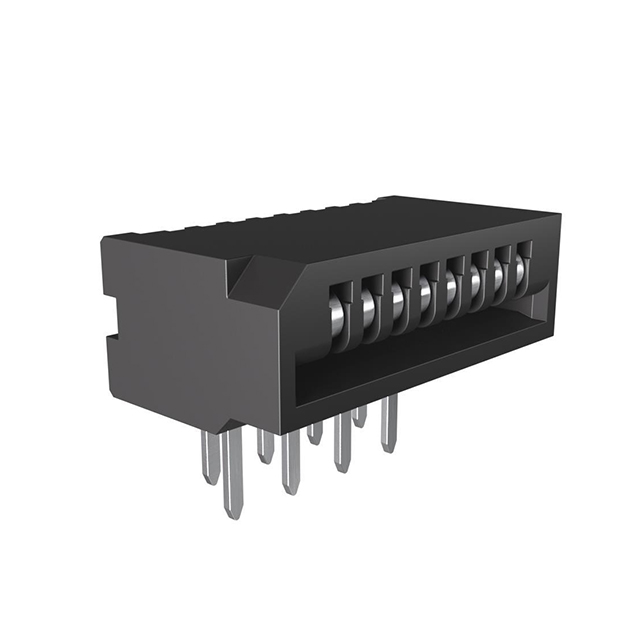

FFC, FPC (Flat Flexible) Connector Assemblies HLW8R-2A7HLF product image

HLW8R-2A7HLF

$0.10

Description：CONN FFC FPC VERT 8POS 1MM R/A
Series：HLW-R
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:b997c5bbe6f3 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HLW8R-2A7HLF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC VERT 8POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for HLW8R-2A7HLF

Description：CONN FFC FPC VERT 8POS 1MM R/A
Series：HLW-R
Mfr：Amphenol ICC (FCI)
Package：Tray
Flat Flex Type：FFC, FPC
Mounting Type：Through Hole, Right Angle
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：8
Pitch：0.039" (1.00mm)
Termination：Kinked Pin
FFC, FCB Thickness：0.30mm
Height Above Board：0.154" (3.90mm)
Locking Feature：-
Cable End Type：Straight or Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polybutylene Terephthalate (PBT), Glass Filled
Actuator Material：-
Features：-
Voltage Rating：100V
Operating Temperature：-55°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for HLW8R-2A7HLF

HLW8R-2A7HLF
