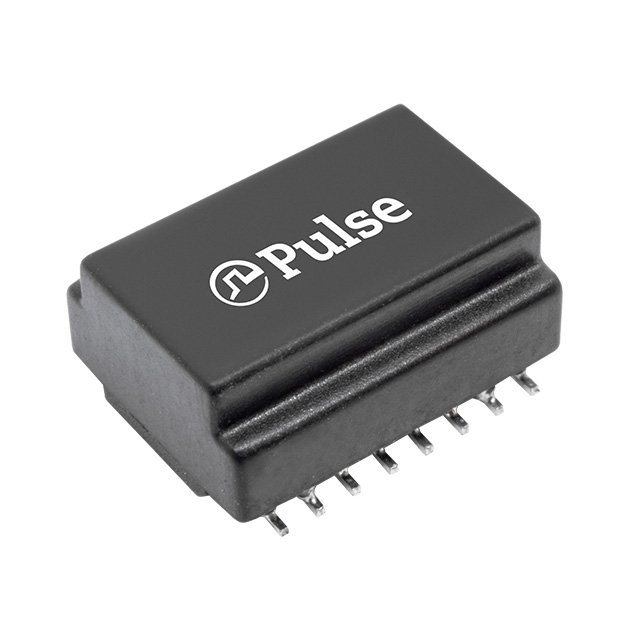

HM1190NL

Description：MDL,SIN,100D,1:1,SMT
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:df0a35383ecb Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MDL,SIN,100D,1:1,SMT
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Max)：0.236" (5.99mm)
Operating Temperature：-40°C ~ 125°C
Grade：-
Qualification：-

Download product information

HM1190NL

Overview

The HM1190NL is a signal transformer manufactured by Pulse Electronics, classified under common mode chokes within the BMS series. It features a surface mount (SMD/SMT) termination type and operates across a temperature range of -40°C to +125°C. The component has a dual-channel configuration with an inductance of 350 µH. Its physical dimensions are 12.7 mm in length, 9.10 mm in width, and 5.99 mm in height. It holds AEC-Q200 qualification for automotive reliability.

Feature Summary

Designed for 10/100 Base-T Ethernet networking applications
Features integrated common mode filtering capabilities
Qualified for automotive environments via AEC-Q200 standard

Applications

Automotive communication systems
Ethernet LAN interfaces
100Base-TX network connections

Procurement Notes

Verify the specific suffix against official documentation, as ordering codes may indicate variations in packaging or tape-and-reel configurations that do not alter the core electrical function. Confirm RoHS compliance status through the manufacturer's current datasheet. Ensure the selected variant matches the required channel count and inductance specifications for the target circuit design before finalizing procurement.

Selection Notes

Select this component for designs requiring robust common mode noise suppression in automotive Ethernet links. The 350 µH inductance value supports 10/100 Base-T signaling integrity. Verify that the SMT package dimensions fit the PCB footprint constraints. Ensure the operating temperature range meets the environmental requirements of the installation site.

Part Context

This part belongs to Pulse Electronics' BMS series of automotive communication magnetics. It serves as a critical interface component for vehicle networking, bridging the gap between physical layer transceivers and the cable harness. The series emphasizes reliability and compact form factors suitable for space-constrained automotive electronics.
