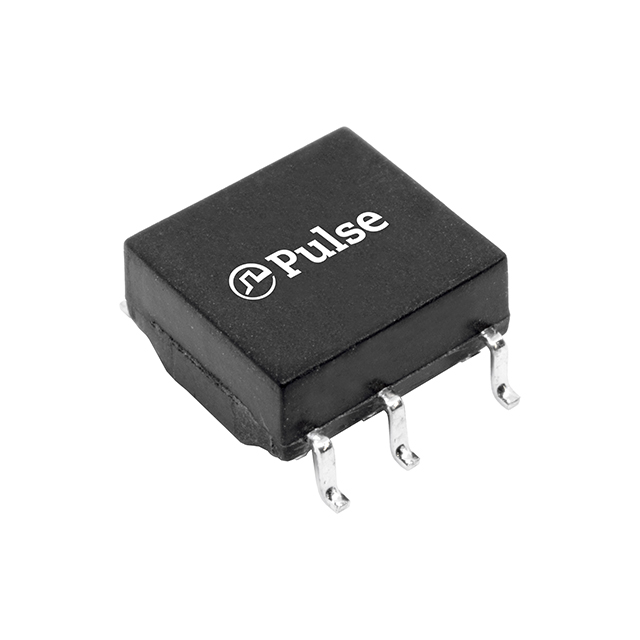

HM1236NL

$4.19

Description：XFMR CMC MODULE AECQ BATT MNGT
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:a7a92ac449b2 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR CMC MODULE AECQ BATT MNGT
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：-
Inductance：500µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：0.340" L x 0.430" W (8.64mm x 10.92mm)
Height - Seated (Max)：0.160" (4.06mm)
Operating Temperature：-
Grade：-
Qualification：-

Download product information

HM1236NL

Overview

The HM1236NL is a surface-mount pulse transformer manufactured by Pulse Electronics, designed for automotive applications with AEC-Q certification. It features a 1:1 turns ratio and an inductance of 500µH. The component supports a maximum insulation voltage of 3.2kV and utilizes SMT termination for PCB integration. It is supplied in tape-and-reel packaging to facilitate automated assembly processes.

Feature Summary

AEC-Q qualified for automotive reliability standards
High insulation voltage capability up to 3.2kV
Surface-mount technology compatible design

Applications

Automotive electronic systems requiring galvanic isolation
Signal coupling in automotive networks
Common mode noise suppression circuits

Procurement Notes

Verify the specific ordering suffix against the official datasheet to ensure correct packaging configuration. Confirm that the AEC-Q200 qualification aligns with target automotive project requirements. Check for any recent product change notifications regarding material or manufacturing updates before finalizing procurement specifications.

Selection Notes

Select this component when a 1:1 isolated pulse transformer with 500µH inductance is required for automotive environments. Ensure the 3.2kV insulation rating meets system safety isolation needs. Verify that the surface-mount package dimensions fit within the available PCB real estate constraints.

Part Context

This part belongs to the Pulse Electronics audio and signal transformers category, specifically tailored for automotive use cases. It serves as a specialized component for providing electrical isolation while maintaining signal integrity in harsh operating conditions typical of modern vehicle architectures.

Replacement Considerations

Cross-reference with other AEC-Q certified pulse transformers from Pulse Electronics offering similar 1:1 ratios and 500µH inductance. Validate pinout compatibility and physical footprint dimensions before substituting to ensure seamless integration without PCB redesign.
