HM1237NL

$5.21

Description：XFMR CMC MODULE AECQ BATT MNGT
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:a34362730c02 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR CMC MODULE AECQ BATT MNGT
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：-
Inductance：650µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：0.455" L x 0.375" W (11.56mm x 9.53mm)
Height - Seated (Max)：0.225" (5.72mm)
Operating Temperature：-
Grade：-
Qualification：-

Download product information

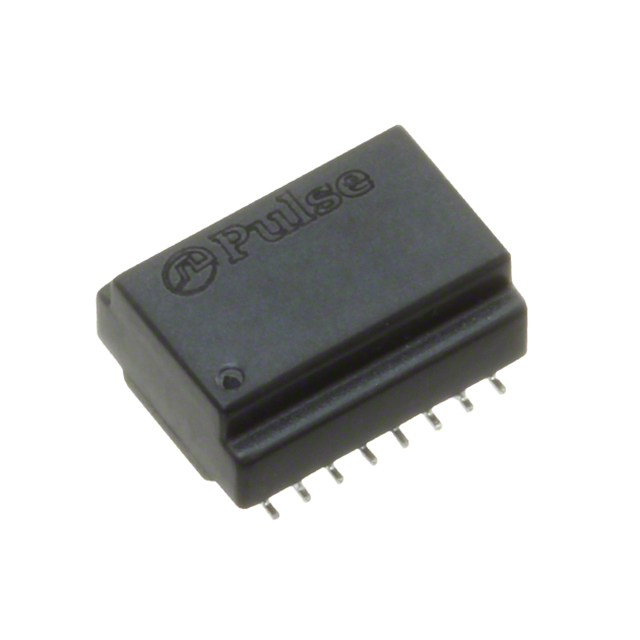

HM1237NL

Overview

The HM1237NL is an audio and signal transformer manufactured by Pulse Electronics, designed for surface mount applications. It functions as a common mode choke (CMC) module specifically qualified under the AEC-Q200 standard for automotive reliability. The component features a 1:1 turns ratio and provides an inductance of 650µH. It is intended for use in battery management systems within automotive environments.

Feature Summary

AEC-Q200 qualified for automotive grade reliability
Surface mount construction for automated assembly
Common mode choke functionality with 1:1 ratio

Applications

Automotive battery management systems
Signal conditioning circuits requiring common mode noise suppression
Audio interface protection in vehicle electronics

Procurement Notes

Verify the specific package configuration upon ordering, as documentation indicates tube packaging for this part number. Confirm that the AEC-Q200 qualification meets the required automotive standards for the target application. Ensure compatibility with surface mount assembly processes and verify that the 650µH inductance value aligns with the circuit design requirements for common mode rejection.

Selection Notes

Select the HM1237NL when automotive reliability certification is mandatory for battery management or signal integrity applications. The choice is driven by the need for a surface mount common mode choke with a precise 1:1 ratio. Consider this component over generic transformers due to its specific AEC-Q200 qualification and defined inductance characteristics suitable for automotive noise filtering.

Part Context

This component belongs to Pulse Electronics' portfolio of audio and signal transformers. It is distinct from their LAN transformers and high-voltage modules, focusing instead on low-power signal integrity and common mode noise suppression. The HM1237NL serves as a specialized solution for automotive electronic architectures requiring certified passive components.

Replacement Considerations

HM1238NL is a related model within the same series offering similar CMC functionality. Verify pinout compatibility and inductance tolerance before substitution. No other direct substitute part numbers are confirmed in public documentation.
