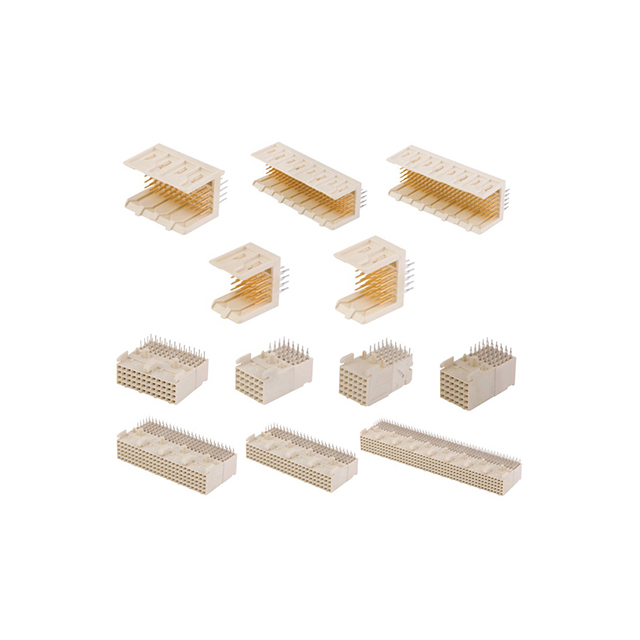

Specialized Backplane Connectors HM1F43FDP270H6PLF product image

HM1F43FDP270H6PLF

Description：CONN RCPT HIGH SPEED 96P EDGE MT
Series：Metral® T
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:440a9e2a154b Category: Specialized Backplane Connectors Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

HM1F43FDP270H6PLF is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN RCPT HIGH SPEED 96P EDGE MT. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for HM1F43FDP270H6PLF

Description：CONN RCPT HIGH SPEED 96P EDGE MT
Series：Metral® T
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Usage：-
Connector Type：Receptacle, Female Sockets
Connector Style：High Speed
Number of Positions：96
Number of Positions Loaded：92
Pitch：0.079" (2.00mm)
Number of Rows：4
Number of Columns：-
Mounting Type：Board Edge, Through Hole, Right Angle
Termination：Press-Fit
Contact Layout, Typical：-
Features：Board Guide, Spacer
Contact Finish：Gold
Contact Finish Thickness：29.5µin (0.75µm)
Color：Natural

Specialized Backplane Connectors datasheet and documents for HM1F43FDP270H6PLF
