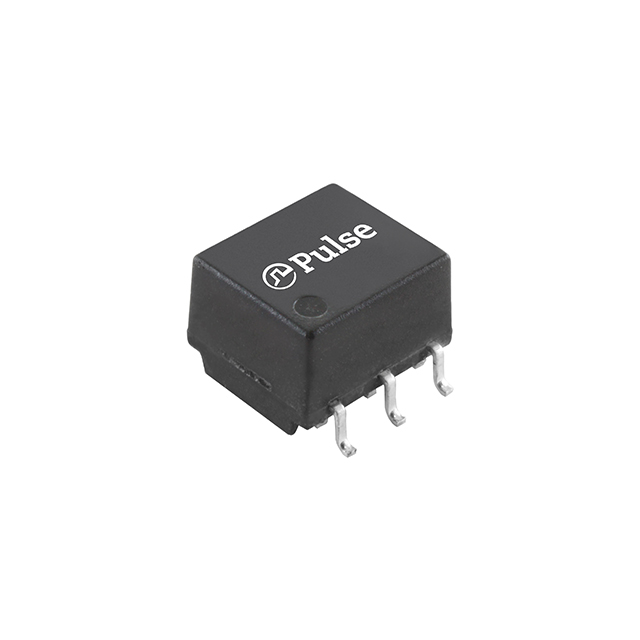

HM2103NL

$2.61

Description：XFMR CMC MODULE AECQ BATT MNGT
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:8d6e78cbfdf9 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR CMC MODULE AECQ BATT MNGT
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：-
Inductance：150µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：-
Mounting Type：Surface Mount
Size / Dimension：0.300" L x 0.370" W (7.62mm x 9.40mm)
Height - Seated (Max)：0.225" (5.72mm)
Operating Temperature：-
Grade：-
Qualification：-

Download product information

HM2103NL

Overview

The HM2103NL is a surface mount pulse transformer manufactured by Pulse Electronics, designed for battery management applications. It features a 1:1 turns ratio and provides an inductance of 450µH. The component is AEC-Q200 qualified, ensuring reliability for automotive environments. It operates within a temperature range of -40°C to +125°C. The physical dimensions are 7.62mm in length, 9.27mm in width, and 5.72mm in height. The device offers an isolation voltage of 4.3kV.

Feature Summary

AEC-Q200 qualified for automotive reliability
Surface mount construction for automated assembly
High isolation voltage capability
Designed for battery management systems

Applications

Battery management systems (BMS)
Automotive electronic circuits
Signal isolation interfaces
Common mode filtering modules

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to confirm functional equivalence. Ensure the component meets AEC-Q200 qualification requirements for your target application. Cross-reference datasheet parameters such as inductance and isolation voltage with system specifications before procurement.

Selection Notes

Select this component for applications requiring high-reliability signal isolation in automotive environments. Consider the surface mount package size for PCB layout constraints. Verify thermal performance within the specified operating temperature range. Ensure compatibility with battery management system architectures requiring common mode chokes or pulse transformers.

Part Context

This component belongs to Pulse Electronics' portfolio of magnetic components for automotive applications. It is part of the BMS series, specifically engineered for battery management systems. The product line emphasizes compliance with automotive quality standards and robust performance in demanding electrical environments.

Replacement Considerations

HMU2103NL is listed as a related variant from Pulse Electronics. Verify pinout and parameter alignment before substitution. No other public substitute part numbers are confirmed.
