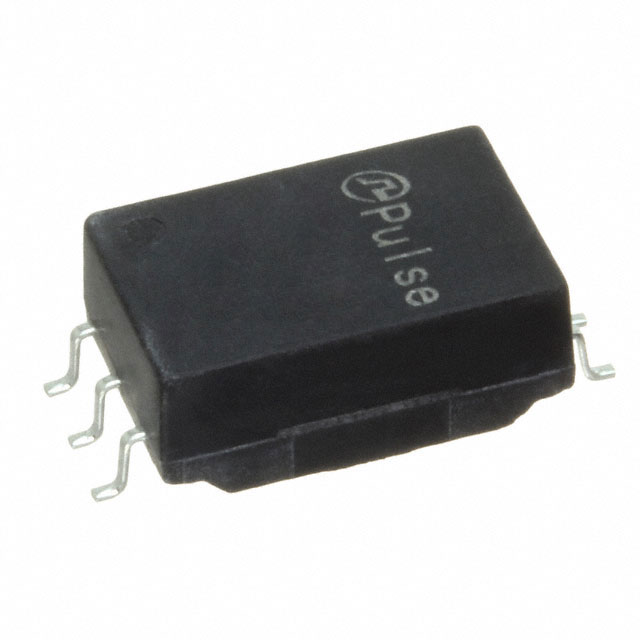

HM2106NLT

$2.36

Description：MDL, SIN, XFMR, 1:1, 4.3KV, SMT,
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:87e29af02f50 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MDL, SIN, XFMR, 1:1, 4.3KV, SMT,
Series：-
Mfr：Pulse Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：-
Inductance：135µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：0.335" L x 0.524" W (8.50mm x 13.31mm)
Height - Seated (Max)：0.226" (5.75mm)
Operating Temperature：-40°C ~ 125°C
Grade：-
Qualification：-

Download product information

HM2106NLT

Overview

The HM2106NLT is a single-channel pulse transformer manufactured by Pulse Electronics, designed for surface-mount technology (SMT) applications. It features an inductance of 135µH and a turns ratio of 1:1. The component supports an isolation voltage of 4300 VDC. Its physical dimensions are 8.50mm in length, 16.84mm in width, and a maximum height of 5.75mm. The device operates within a temperature range of -40°C to +125°C.

Feature Summary

Provides high-voltage isolation capability with a rated isolation voltage of 4300 VDC.
Engineered for surface-mount integration with standardized SMT package dimensions.
Delivers precise signal coupling through a fixed 1:1 turns ratio configuration.

Applications

Isolated power supply circuits
Gate drive transformer interfaces
Digital communication isolation barriers

Procurement Notes

Verify the specific datasheet version for the HM2106NLT to confirm exact electrical tolerances and thermal characteristics before finalizing design specifications. Ensure that the selected supplier provides documentation confirming compliance with relevant safety standards and RoHS directives applicable to your region. Cross-reference the package outline drawing to validate footprint compatibility with your PCB layout requirements.

Selection Notes

Select this component when a single-channel isolated transformer with 135µH inductance is required. The 4300 VDC isolation rating makes it suitable for high-voltage separation needs. Consider the 1:1 ratio for direct signal transfer without voltage transformation. Evaluate the SMT form factor against available board space constraints and reflow soldering profiles.

Part Context

This part belongs to the Pulse Electronics transformer portfolio, specifically categorized under signal transformers or audio transformers depending on the application context. It serves as a passive magnetic component for galvanic isolation in electronic systems. The product line emphasizes reliability in compact surface-mount formats for modern electronics manufacturing.

Replacement Considerations

No public confirmed substitute part numbers are identified in the provided source material. Consult manufacturer engineering support for qualified alternatives if this specific model becomes unavailable.
