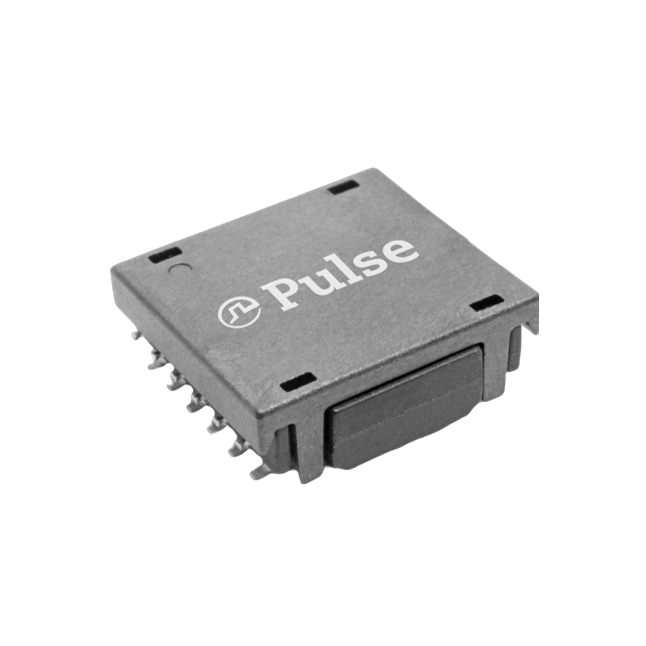

HM2162NL

$4.08

Description：XFMR DUAL CMC 1:1 4.3KV FUNC
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:c7b2e6f8ee03 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR DUAL CMC 1:1 4.3KV FUNC
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：Battery Management
Inductance：150µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.636" L x 0.583" W (16.15mm x 14.80mm)
Height - Seated (Max)：0.236" (6.00mm)
Operating Temperature：-40°C ~ 125°C
Grade：Automotive
Qualification：AEC-Q200

Download product information

HM2162NL

Overview

The HM2162NL is a surface-mount PCB transformer from Pulse Electronics, designed for Battery Management Systems (BMS). It features an inductance of 150 uH and operates within a temperature range of -40 C to +125 C. The component provides 1.6kV isolation with a single primary and single secondary winding configuration.

Feature Summary

Designed specifically for Battery Management System applications
Provides high voltage isolation capability
Surface mount construction for automated assembly

Applications

Battery Management Systems
Isolated power signal transmission
Automotive electronic control units

Procurement Notes

Verify the specific datasheet version for the HM2162NL to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with your board layout regarding the SMT footprint. Confirm that the 1.6kV isolation rating meets your system safety requirements before finalizing procurement.

Selection Notes

Select this component when a BMS application requires isolated signal coupling with 150 uH inductance. The single primary to single secondary configuration suits simple galvanic isolation needs. Verify thermal performance at the maximum operating temperature of +125 C for your specific environment.

Part Context

This part belongs to the BMS series from Pulse Electronics, focusing on components for automotive battery management. It complements other transformers like the HM2168NL, which offers dual windings and slightly different isolation ratings for more complex circuit topologies.

Replacement Considerations

Check for direct substitutes such as the HM2168NL if dual primary/secondary windings are acceptable. Verify pinout compatibility and physical dimensions before substituting to ensure board fit without redesign.
