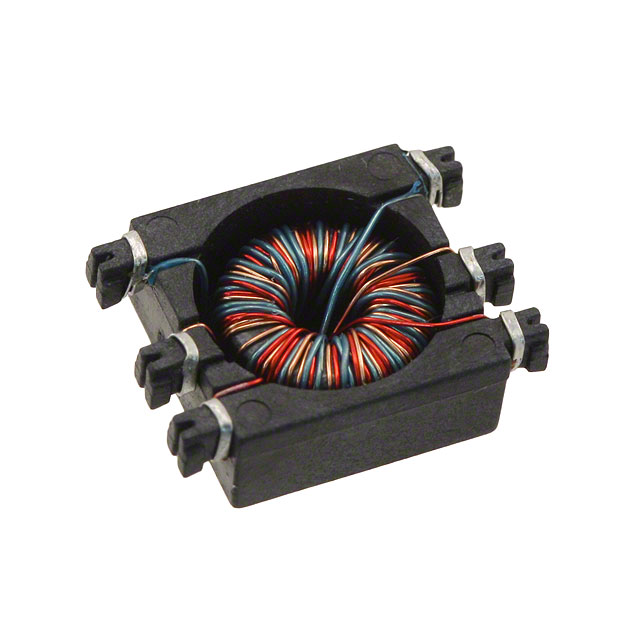

HM42-30001LFTR

$6.49

Description：PULSE XFMR 1:1:1 980UH
Series：HM42
Mfr：TT Electronics/BI Magnetics
Package：Cut Tape (CT)

SKU:32eb9fe2bf94 Category: Pulse Transformers Brand: TT Electronics/BI Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1:1:1 980UH
Series：HM42
Mfr：TT Electronics/BI Magnetics
Package：Cut Tape (CT)
Transformer Type：Gate Drive
Inductance：980µH
ET (Volt-Time)：30.2VµS
Turns Ratio - Primary:Secondary：1:01:01
Mounting Type：Surface Mount
Size / Dimension：0.340" L x 0.460" W (8.64mm x 11.68mm)
Height - Seated (Max)：0.161" (4.10mm)
Operating Temperature：-40°C ~ 125°C
Grade：-
Qualification：-

Download product information

HM42-30001LFTR

Overview

The HM42-30001LFTR is a surface mount pulse transformer manufactured by TT Electronics/BI Magnetics, designed for gate drive applications. It features a turns ratio of 1:1:1 and an inductance of 300µH. The component has an ET value of 40.4Vµs and operates within a temperature range of -40°C to 125°C. Its physical dimensions are 6.60mm in length, 8.10mm in width, and a maximum height of 5.50mm.
