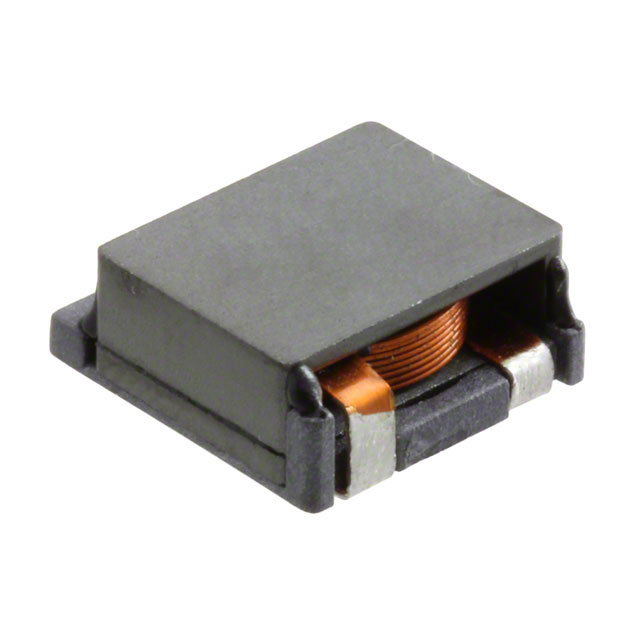

HM65-8R2LFTR13

$2.21

Description：FIXED IND 8.2UH 4.5A 11.4 MOHM
Series：HM65
Mfr：TT Electronics/BI Magnetics
Package：Cut Tape (CT)

SKU:59ca98fdca83 Category: Fixed Inductors Brand: TT Electronics/BI Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FIXED IND 8.2UH 4.5A 11.4 MOHM
Series：HM65
Mfr：TT Electronics/BI Magnetics
Package：Cut Tape (CT)
Type：Wirewound
Material - Core：-
Inductance：8.2 µH
Tolerance：±20%
Current Rating (Amps)：4.5 A
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：11.4mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 130°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max)：0.220" (5.60mm)
Features：-

Download product information

HM65-8R2LFTR13

Overview

The HM65-8R2LFTR13 is a shielded surface-mount power inductor from the HM65 series by TT Electronics/BI Magnetics. It features a wirewound construction with an inductance of 8.2 µH and a tolerance of ±20%. The component supports a maximum DC current of 5.8 A and has a maximum DC resistance of 11.4 mOhms. It operates within a temperature range of -40°C to +125°C and utilizes standard SMD/SMT termination for PCB mounting.

Feature Summary

Shielded design to minimize electromagnetic interference
High current handling capability up to 5.8 A
Low DC resistance for efficient power delivery

Applications

Power supply circuits
DC-DC converter modules
General power electronics

Procurement Notes

Verify the exact manufacturer part number against official TT Electronics documentation to ensure compatibility. Confirm that the shielded variant matches system requirements, as unshielded versions may exist within the same series. Check for RoHS compliance status in the latest datasheet before integration.

Selection Notes

Select this component based on its 8.2 µH nominal value and 5.8 A current rating. Ensure the operating environment stays within the specified -40°C to +125°C range. Compare effective inductance at peak current rather than relying solely on nominal values when designing for specific converter topologies.

Part Context

This component belongs to the HM65 series of surface-mount power inductors. It is manufactured by TT Electronics/BI Magnetics and is designed for high-current applications requiring compact shielding. The series offers various inductance values tailored for different power management needs.
