Product Detailed Parameters
- Description：FIXED IND 10UH 1.3A 65 MOHM SMD
- Series：HM66
- Mfr：TT Electronics/BI Magnetics
- Package：Cut Tape (CT)
- Type：Wirewound
- Material - Core：-
- Inductance：10 µH
- Tolerance：±20%
- Current Rating (Amps)：1.3 A
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：65mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：10 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.224" L x 0.224" W (5.70mm x 5.70mm)
- Height - Seated (Max)：0.118" (3.00mm)
- Features：-
Download product information
Overview

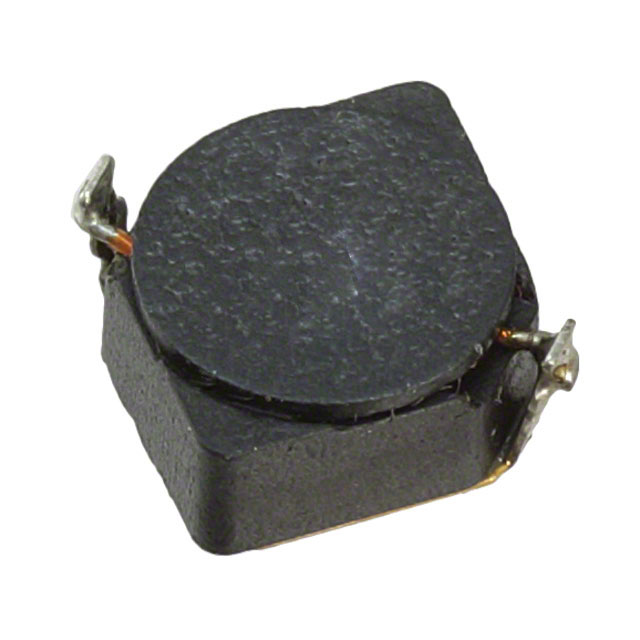

The HM66-50100LFTR13 is a surface-mount power inductor from the HM66 series by TT Electronics/BI Magnetics. It features a wirewound core and shielded construction, designed for SMD applications. The component has an inductance of 10 µH with a tolerance of ±20%. It supports a maximum DC current of 1.3 A and exhibits a maximum DC resistance of 65 mΩ. The package dimensions are non-standard.
Feature Summary
- Shielded wirewound construction to minimize electromagnetic interference
- Designed for surface-mount technology (SMD) integration
- Supports high DC current ratings suitable for power circuits
Applications
- Power supply filtering
- DC-DC converter circuits
- General-purpose power electronics
Procurement Notes
Verify the specific manufacturer part number HM66-50100LFTR13 against official datasheets to confirm electrical parameters and physical dimensions. Ensure compatibility with automated pick-and-place equipment due to the surface-mount package type. Check for RoHS compliance status if required by project specifications.
Selection Notes
Select this component when a shielded power inductor with 10 µH inductance and 1.3 A current handling is required. Consider the 65 mΩ DC resistance for efficiency calculations. Verify that the non-standard package footprint fits the PCB layout constraints compared to standard footprints.
Part Context
This component belongs to the HM66 series of fixed inductors manufactured by TT Electronics/BI Magnetics. The series offers various inductance values and current ratings tailored for surface-mount power applications. The HM66-50100LFTR13 specifically provides a balance of shielding and current capacity within this product line.
Replacement Considerations
No direct substitute part numbers are confirmed in the provided documentation. Evaluate other HM66 series variants or shielded power inductors from the same manufacturer for potential cross-referencing based on inductance and current requirements.
