Product Detailed Parameters
- Description：FIXED IND 12UH 1.55A 70 MOHM SMD
- Series：HM66
- Mfr：TT Electronics/BI Magnetics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Wirewound
- Material - Core：-
- Inductance：12 µH
- Tolerance：±20%
- Current Rating (Amps)：1.55 A
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：70mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：10 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.264" L x 0.264" W (6.70mm x 6.70mm)
- Height - Seated (Max)：0.118" (3.00mm)
- Features：-
Download product information
Overview

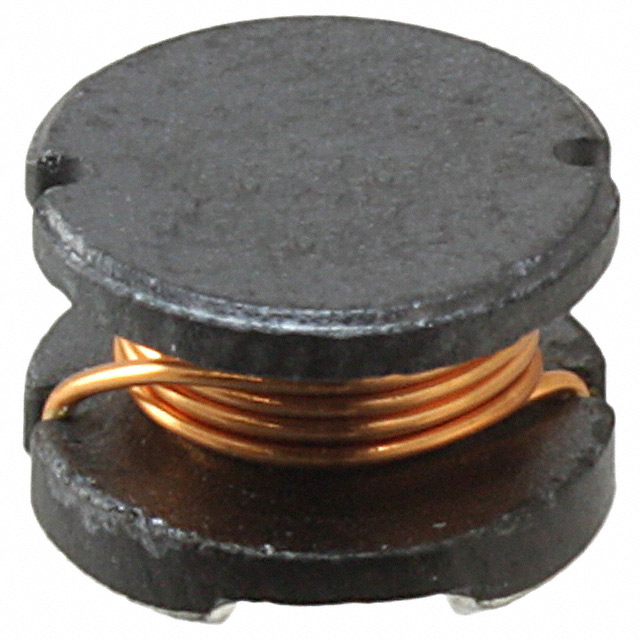

The HM66-60120LFTR13 is a shielded surface-mount power inductor from the HM66 series, manufactured by TT Electronics/BI Magnetics. It features a wirewound core construction and is designed for PCB mounting applications. The component has an inductance of 12 uH with a tolerance of 20%. Key electrical specifications include a maximum DC resistance of 70 mOhms and a current rating of 1.55 A. The physical dimensions are nonstandard, packaged in reels for automated assembly.
Feature Summary
- Shielded surface-mount design for electromagnetic interference reduction
- Wirewound core construction for stable inductance performance
- Low DC resistance to minimize power loss in high-current applications
Applications
- DC-DC converter circuits
- Power supply filtering stages
- General-purpose signal processing inductors
Procurement Notes
Verify the manufacturer part number HM66-60120LFTR13 against official TT Electronics documentation to confirm availability and specifications. Ensure compatibility with surface-mount reflow soldering processes. Check for any specific handling requirements related to the reel packaging format. Confirm that the 12 uH inductance and 1.55 A current rating meet the target circuit design requirements before procurement.
Selection Notes
Select this component when a shielded SMD power inductor with 12 uH nominal inductance is required. Consider the 70 mOhm DC resistance and 1.55 A current rating for efficiency and thermal management. The HM66 series offers a compact form factor suitable for space-constrained PCB layouts. Verify that the wirewound construction aligns with the application's frequency and stability needs.
Part Context
The HM66-60120LFTR13 belongs to the HM66 series of power inductors produced by TT Electronics/BI Magnetics. This series is characterized by shielded designs and wirewound cores, targeting reliable performance in surface-mount applications. The component is categorized under fixed inductors within the broader inductors, coils, and chokes product family.
Replacement Considerations
Cross-reference with other HM66 series variants or equivalent shielded SMD power inductors from TT Electronics if stock is unavailable. Ensure substitute components match the 12 uH inductance, 1.55 A current rating, and 70 mOhm DC resistance specifications.
