Product Detailed Parameters
- Description：FIXED IND 150UH 1.15A 506MOHM SM
- Series：HM66
- Mfr：TT Electronics/BI Magnetics
- Package：Tape & Reel (TR)
- Type：Wirewound
- Material - Core：-
- Inductance：150 µH
- Tolerance：±20%
- Current Rating (Amps)：1.15 A
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：506mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.402" L x 0.394" W (10.20mm x 10.00mm)
- Height - Seated (Max)：0.157" (4.00mm)
- Features：-
Download product information
Overview

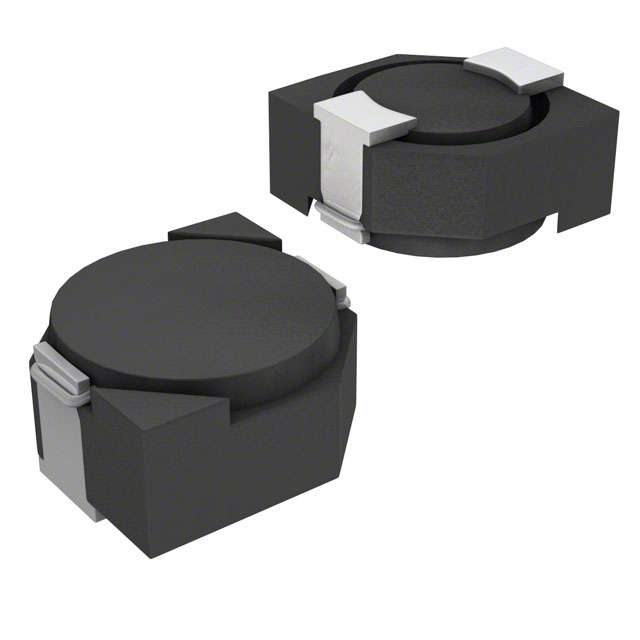

The HM66-80151LFTR13 is a shielded wirewound power inductor from the HM66 series, manufactured by TT Electronics/BI Magnetics. It features a nonstandard form factor designed for surface mount technology (SMD) applications. The component provides an inductance of 150 µH with a tolerance of 20%. It supports a maximum DC current of 1.15 A and exhibits a maximum DC resistance of 506 mΩ. The device utilizes a standard SMD termination style and is supplied in a reel packaging format.
Feature Summary
- Shielded wirewound construction minimizes electromagnetic interference
- Surface mount design facilitates automated PCB assembly
- Nonstandard physical dimensions accommodate specific layout constraints
Applications
- DC-DC converter input and output filtering
- Power supply circuit energy storage
- General purpose signal conditioning in compact electronics
Procurement Notes
Verify the exact part number suffix to ensure compatibility with required inductance values and current ratings. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Cross-reference mechanical dimensions against the target PCB footprint to prevent assembly errors. Ensure the supplier provides valid traceability records for quality assurance purposes.
Selection Notes
Select this component when a 150 µH inductance value is required within a shielded SMD package. Evaluate the 1.15 A current rating against the peak load requirements of the target circuit. Consider the 506 mΩ DC resistance impact on overall power efficiency. Compare physical dimensions against available board space to ensure proper fitment.
Part Context
This component belongs to the HM66 series of fixed inductors produced by TT Electronics/BI Magnetics. The series offers various inductance options tailored for surface mount power applications. The HM66 line emphasizes compact designs suitable for modern electronic devices requiring efficient power management solutions.
Replacement Considerations
Consult official substitution guides for compatible equivalents within the same series. Verify that alternative parts match the 150 µH inductance and 1.15 A current specifications. Ensure mechanical footprint compatibility before implementing any substitute components.
