HM72A-101R5LFTR13

Overview

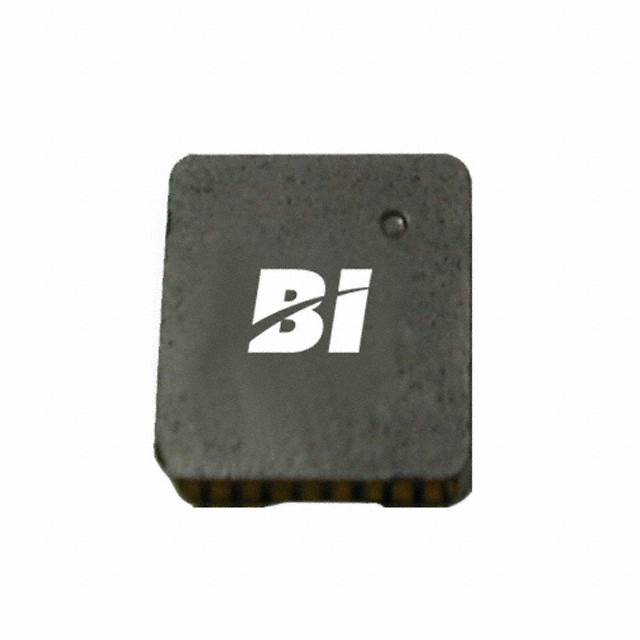

The HM72A-101R5LFTR13 is a surface-mount power inductor from the HM72A series manufactured by TT Electronics/BI Magnetics. It features a molded construction with an inductance of 1.5 µH and a tolerance of ±20%. The component supports a current rating of 12 A and a saturation current of 27.5 A, with a maximum DC resistance of 5.8 mΩ. Designed for high-power applications, it operates within a temperature range of -40°C to +125°C.

Feature Summary

• Molded shielded construction for high power handling
• High saturation current capability up to 27.5 A
• Low DC resistance for efficient power delivery

Applications

• Power supply circuits
• DC-DC converter modules
• Industrial power systems

Procurement Notes

Verify end-of-life status and restricted availability through official channels. Confirm RoHS compliance and specific packaging requirements such as reel or cut tape quantities. Ensure compatibility with existing PCB footprints and thermal management designs before finalizing procurement orders.

Selection Notes

Select this component for applications requiring high current density and low impedance. Compare saturation characteristics against peak load demands. Verify thermal performance under continuous operation conditions. Ensure the molded package dimensions fit within the designated board space constraints.

Part Context

This part belongs to the HM72A series of high-performance molded SMT inductors. The series is designed for demanding power electronics environments. It offers robust magnetic shielding and high thermal stability compared to standard unshielded alternatives.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
