HMC-APH462-SX

Overview

The HMC-APH462-SX is a GaAs HEMT MMIC power amplifier manufactured by Analog Devices Inc. It operates within the 15 GHz to 27 GHz frequency range and delivers 1 Watt of output power. The component utilizes surface-mount die packaging, specifically designed for high-frequency RF applications requiring robust power handling in a compact form factor.

Feature Summary

• Utilizes GaAs HEMT technology for high-performance RF amplification
• Delivers 1 Watt output power across a wide microwave bandwidth

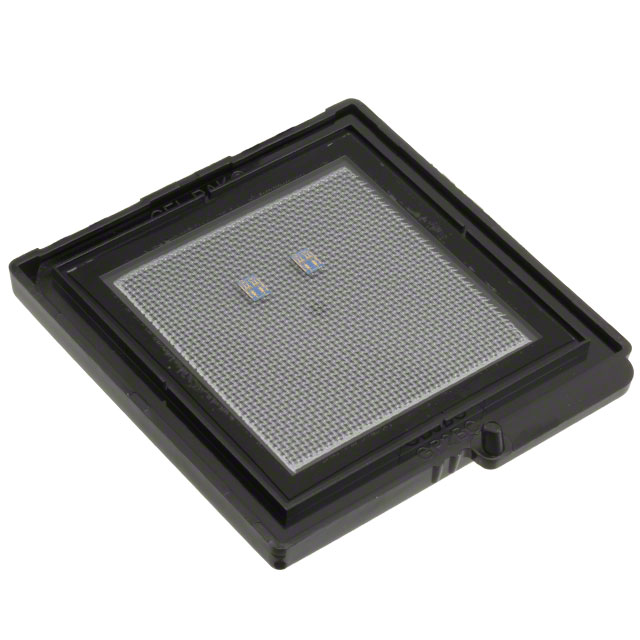

• Designed as a bare die for flexible integration into custom substrates

Applications

• VSAT communication systems
• Point-to-point microwave links
• Electronic warfare subsystems
• Test and measurement equipment

Procurement Notes

Verify the specific suffix designation with the manufacturer to confirm exact electrical characteristics and pinout configuration. Ensure that the procurement channel provides authentic components from Analog Devices Inc. to avoid counterfeit risks associated with bare die RF MMICs.

Selection Notes

Select this component when a wideband 15-27 GHz power amplifier is required. Consider the thermal management capabilities of the host substrate, as the bare die format necessitates careful heat dissipation design to maintain performance and reliability under continuous operation.

Part Context

This part belongs to the HMC-APH series of power amplifiers from Analog Devices. It complements other wideband MMIC solutions by offering high linearity and efficiency in the Ka-band spectrum, serving as a critical active element in modern wireless infrastructure.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Analog Devices technical support for direct equivalents or next-generation replacements.
