HMC-C002

Overview

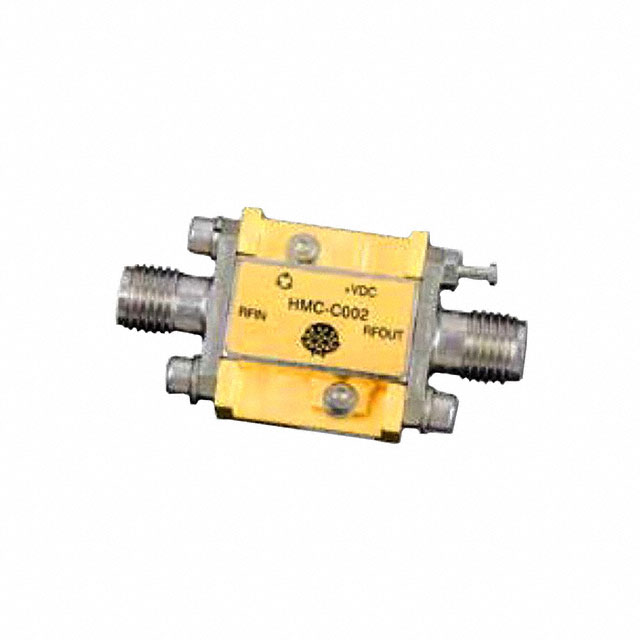

The HMC-C002 is a GaAs MMIC PHEMT low noise distributed amplifier housed in a miniature, hermetic module with replaceable SMA connectors. It operates within a frequency range of 2 to 20 GHz. The device provides a gain of 13 dB and features self-biasing capabilities, eliminating the need for external bias circuitry.

Feature Summary

• Integrated GaAs MMIC PHEMT technology for high performance
• Miniature hermetic module packaging with replaceable SMA connectors
• Self-biasing design simplifies integration

Applications

• VSAT systems
• Electronic warfare applications
• Test and measurement equipment

Procurement Notes

Verify the specific revision and manufacturing date code upon ordering, as component specifications may evolve. Confirm that the replacement SMA connector requirement aligns with your system's interface needs. Ensure compliance with RoHS3 standards if required by your project regulations. Cross-reference the official Analog Devices datasheet for the most current electrical characteristics before finalizing procurement.

Selection Notes

Select this component when a wideband low noise amplification solution is required from 2 to 20 GHz. The hermetic package offers environmental protection suitable for harsh conditions. Consider the self-biasing feature to reduce board space and complexity. Evaluate the 13 dB gain against system link budget requirements to ensure adequate signal amplification without excessive noise figure degradation.

Part Context

This part belongs to the HMC series of RF modules from Analog Devices, designed for demanding microwave applications. It integrates monolithic microwave integrated circuit technology into a robust module format. The series typically targets communications and defense sectors requiring reliable high-frequency performance.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
