Product Detailed Parameters
- Description：INGAP HBT DIVIDE-BY-2 MODULE 0.5
- Series：-
- Mfr：Analog Devices Inc.
- Package：Box
- Function：Divide-by-2
- Frequency：500MHz ~ 18GHz
- RF Type：VSAT
- Secondary Attributes：-
- Mounting Type：Connector Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

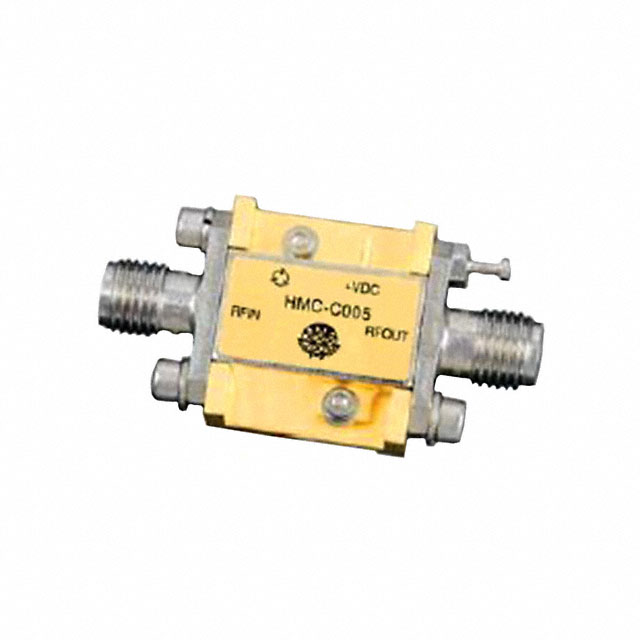

The HMC-C005 is a low noise Divide-by-2 Static Divider module utilizing InGaP GaAs HBT technology. It operates within a frequency range of 500MHz to 18GHz and is housed in a miniature, hermetic package with replaceable SMA connectors. Designed for VSAT applications, this component functions as a prescaler for PLL systems. The device requires an operating supply voltage of 5V. It is currently classified as obsolete by the manufacturer.
Feature Summary
- Implements divide-by-2 static division using InGaP GaAs HBT technology
- Features a miniature hermetic module construction with replaceable SMA connectors
- Provides low noise performance suitable for high-frequency signal processing
Applications
- VSAT communication systems
- Phase-Locked Loop (PLL) prescaler applications
- High-frequency signal division circuits
Procurement Notes
Verify component authenticity through authorized channels due to obsolete status. Confirm technical compatibility with existing system requirements before integration. Check for available surplus stock from certified distributors. Ensure handling procedures respect hermetic packaging integrity. Validate replacement options if new production units are unavailable.
Selection Notes
Select this component for applications requiring divide-by-2 functionality up to 18GHz. Consider the hermetic package for environmental protection needs. Evaluate the 5V supply requirement against system power constraints. Assess the obsolete status impact on long-term supply chain stability. Compare performance metrics against modern alternatives if availability is critical.
Part Context
The HMC-C005 belongs to the Hittite Microwave Corporation product line, now part of Analog Devices Inc. It serves as a specialized RF module for frequency division tasks. The device represents legacy technology in the company's portfolio, focusing on high-frequency precision division for satellite and communication infrastructure.
Replacement Considerations
Public confirmed substitute part numbers are not identified in available documentation. Consult official Analog Devices resources for current equivalent recommendations.
