HMC-C006

Overview

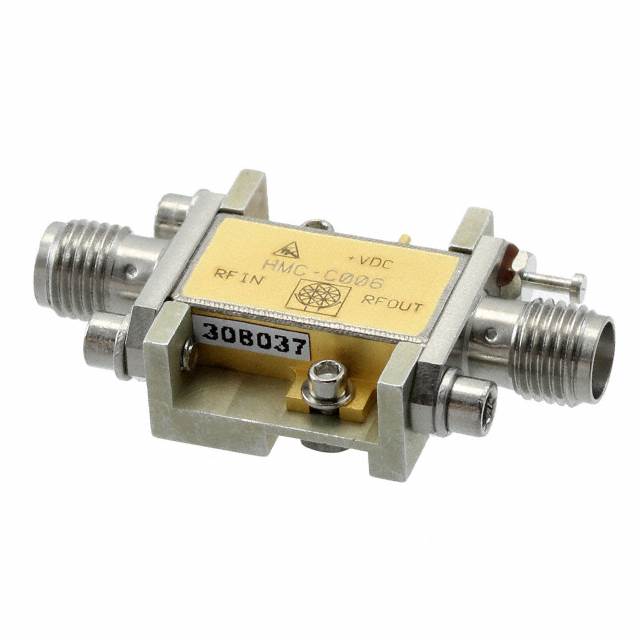

The HMC-C006 is a low-noise Divide-by-4 Static Divider module manufactured by Analog Devices Inc. It utilizes InGaP GaAs HBT technology and operates within a frequency range of 500 MHz to 18 GHz. The component provides a fixed divide-by-4 function and is packaged in a miniature, hermetic module with replaceable SMA connectors. This general-purpose RF prescaler is designed for high-frequency signal processing applications requiring stable division ratios.

Feature Summary

• Utilizes InGaP GaAs HBT technology for low noise performance
• Packaged in a miniature, hermetic module with replaceable SMA connectors
• Provides a fixed divide-by-4 static division function

Applications

• General-purpose RF prescaling
• High-frequency signal processing
• Frequency division circuits

Procurement Notes

Verify the current lifecycle status as the product may be discontinued or subject to limited supply constraints. Confirm that the specific package type matches system requirements, noting the use of replaceable SMA connectors. Ensure compatibility with operating frequencies between 500 MHz and 18 GHz before procurement.

Selection Notes

Select this component when a fixed divide-by-4 ratio is required across the 500 MHz to 18 GHz spectrum. Consider the hermetic module packaging for environmental protection and the replaceable SMA connectors for ease of integration. Evaluate the InGaP GaAs HBT technology benefits for low noise applications in RF systems.

Part Context

The HMC-C006 belongs to the HMC series of RF modules from Analog Devices Inc. It is categorized under RF ICs and Modules, specifically functioning as a prescaler. The device is part of a broader portfolio of microwave and RF components designed for communication and radar systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify if other HMC series dividers meet similar frequency and division ratio requirements.
