HMC-C010

Overview

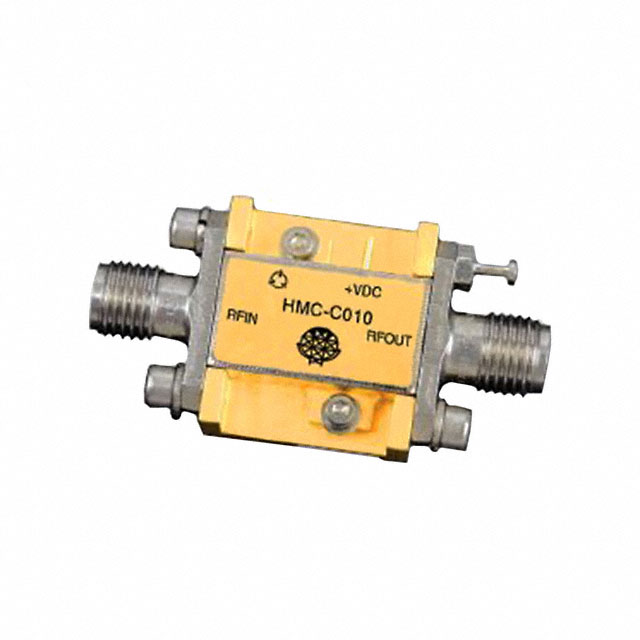

The HMC-C010 is an analog phase shifter module from Analog Devices Inc., designed for RF applications operating between 6 GHz and 15 GHz. It provides continuously variable phase shift controlled by an analog voltage ranging from 0 to +5V. At 6 GHz, it delivers up to 800 degrees of phase shift, while at 16 GHz, it offers up to 450 degrees. The device maintains consistent insertion loss and phase shift variation across its range. It operates on a 5V supply and features a module package with SMA connectors.

Feature Summary

• Provides continuously variable analog phase shift via 0 to +5V control voltage
• Maintains constant insertion loss relative to phase shift changes
• Operates within the 6 GHz to 15 GHz frequency range
• Features SMA connector interface in a module package

Applications

• Phased array antenna systems requiring beam steering
• RF signal processing chains needing precise phase adjustment
• Test and measurement equipment for high-frequency characterization

Procurement Notes

Verify the specific datasheet version for exact electrical parameters at target frequencies. Confirm that the required phase shift range (e.g., 600 degrees vs 800 degrees) aligns with system design needs at the operating frequency. Ensure the 0-5V control voltage compatibility with upstream circuitry. Check module packaging requirements for SMA connector integration.

Selection Notes

Select this component when continuous analog phase control is preferred over digital steps. Consider the frequency-dependent phase shift limits: 800 degrees at 6 GHz versus 450 degrees at 16 GHz. Evaluate if the constant insertion loss characteristic meets link budget requirements. Verify that the module form factor with SMA connectors fits the mechanical constraints of the assembly.

Part Context

The HMC-C010 belongs to Analog Devices' portfolio of RF modules focused on signal chain integrity. It complements other HMC series components by providing analog phase manipulation capabilities. Unlike digital phase shifters, it offers smooth phase transitions suitable for applications where quantization noise must be minimized. It is distinct from switches or amplifiers, serving specifically as a phase control element in microwave circuits.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult Analog Devices directly for qualified alternatives or cross-reference options based on specific frequency and phase shift requirements.
