HMC-C016

Overview

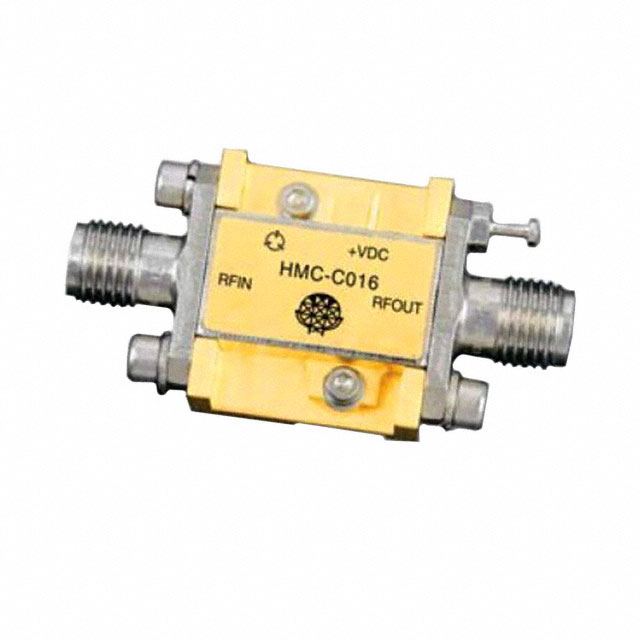

The HMC-C016 is a GaAs MMIC PHEMT Low Noise Amplifier housed in a miniature, hermetic module. It operates within the 7 to 17 GHz frequency range and delivers 22 dB of gain with a noise figure of 3 dB. The device requires an operating supply voltage of 16 V. This high dynamic range amplifier is designed for medium-gain VSAT applications.

Feature Summary

• GaAs MMIC PHEMT technology
• Miniature hermetic module packaging
• High dynamic range performance

Applications

• Medium-gain VSAT systems

Procurement Notes

Verify component authenticity through authorized Analog Devices channels or certified distributors. Confirm datasheet revisions and specific lot traceability requirements prior to procurement. Ensure storage conditions meet hermetic package standards to maintain reliability. Cross-reference part markings against official manufacturer documentation to prevent counterfeit substitution.

Selection Notes

Select this component for designs requiring stable amplification between 7 and 17 GHz. Evaluate thermal management needs due to the 16 V supply requirement. Consider the hermetic module form factor for environmental protection. Assess system noise budget compatibility with the 3 dB noise figure specification.

Part Context

Part of the Analog Devices RF signal chain portfolio, originally developed by Hittite Microwave Corporation before acquisition. Represents specialized GaAs MMIC solutions for high-frequency wireless infrastructure.

Replacement Considerations

No public confirmed substitute part numbers are available.
