HMC-C020

Overview

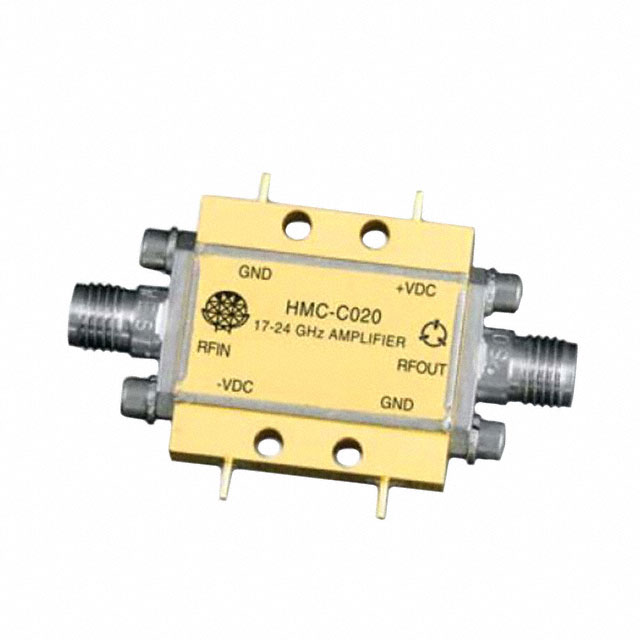

The HMC-C020 is a GaAs MMIC PHEMT power amplifier module designed for the 17 to 24 GHz frequency range. It delivers an output power of 24 dBm with a gain of 22 dB and a noise figure of 4.5 dB. The device operates on a single 15 V supply voltage. Encased in a miniature hermetic module, it features replaceable 2.92mm connectors for reliable interconnection.

Feature Summary

• Utilizes GaAs MMIC PHEMT technology for high-performance amplification
• Housed in a miniature hermetic module with replaceable 2.92mm connectors

Applications

• Microwave Radio systems
• VSAT applications
• Military and Space equipment
• Test and Lab Instrumentation

Procurement Notes

Verify component authenticity through authorized Analog Devices channels or certified distributors. Confirm that the received unit matches the HMC-C020 designation and includes the specified 2.92mm connectors. Ensure storage and handling procedures comply with manufacturer guidelines for hermetic modules to maintain performance integrity.

Selection Notes

Select this component when a wideband power amplifier is required for frequencies between 17 and 24 GHz. It is suitable for designs needing 24 dBm output power and 22 dB gain. Consider the hermetic package and connector type for integration into microwave radio, VSAT, or military space systems requiring robust signal generation.

Part Context

The HMC-C020 belongs to the HMC series of RF modules from Analog Devices. It serves as a specialized power amplifier solution within their portfolio of microwave components. This module complements other RF switches and oscillators by providing necessary signal amplification for high-frequency transmission paths.

Replacement Considerations

No public confirmed substitute part numbers are available.
