HMC-C026

Overview

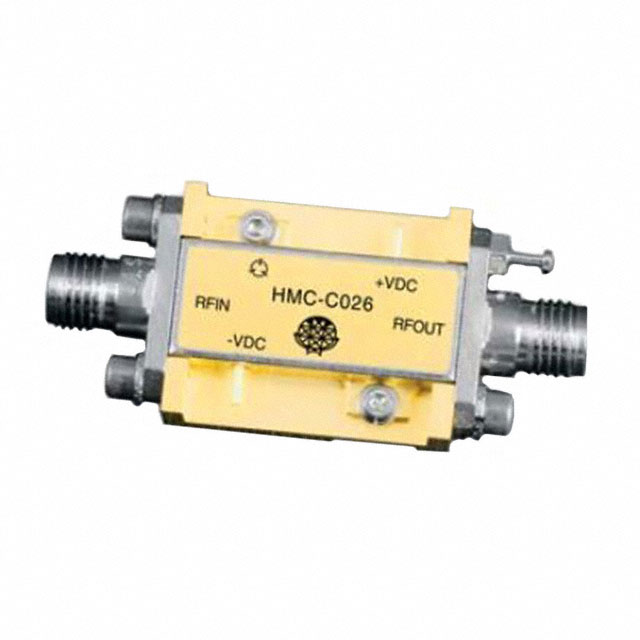

The HMC-C026 is a GaAs MMIC pHEMT distributed power amplifier housed in a miniature, hermetic module with replaceable SMA connectors. It operates between 2 and 20 GHz. The device provides 30 dB of gain and delivers an output power of 26 dBm. It requires a supply voltage of 16 V and draws a supply current of 400 mA. The unit functions within a temperature range of -55°C to +85°C.

Feature Summary

• Utilizes GaAs MMIC pHEMT technology for distributed amplification
• Encapsulated in a miniature, hermetic module construction
• Features replaceable SMA connectors for interface flexibility

Applications

• W-band high gain power amplification systems
• Microwave communication links
• Test and measurement instrumentation

Procurement Notes

Verify the specific part number against official Analog Devices documentation to confirm technical specifications. Ensure that the procurement channel provides valid traceability for RF modules. Confirm compatibility with system requirements regarding operating voltage and thermal management before finalizing orders.

Selection Notes

Select this component for applications requiring wideband operation from 2 to 20 GHz. Consider the hermetic packaging for environmental protection and the replaceable connector design for maintenance ease. Evaluate the 16 V supply requirement and 400 mA current draw against available power resources.

Part Context

This model belongs to the HMC-C026 series of RF amplifiers manufactured by Analog Devices Inc. It is categorized under wireless and RF modules, specifically designed for high-frequency power amplification tasks in microwave and millimeter-wave frequency ranges.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the available documentation.
