HMC-C030

Overview

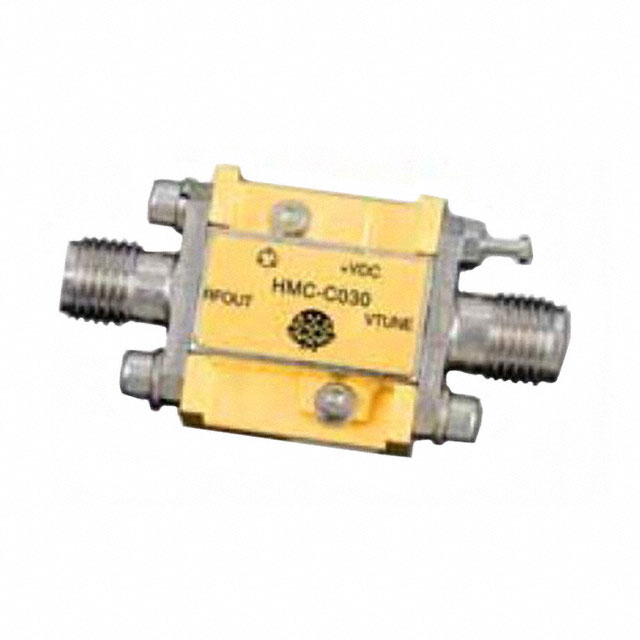

The HMC-C030 is a wideband GaAs InGaP Voltage Controlled Oscillator (VCO) module designed for radar applications. It integrates the resonator, negative resistance device, and varactor diode within a single package. The component operates within a frequency range of 8 GHz to 12.5 GHz. It requires a supply voltage between 8 V and 15 V and draws a typical supply current of 195 mA. The module utilizes connector mount technology for installation.

Feature Summary

• Integrates resonator, negative resistance device, and varactor diode in a single module
• Incorporates an internal voltage regulator for stable operation
• Features an output buffer amplifier to enhance signal power

Applications

• Radar systems
• Wideband communication links
• Test and measurement equipment

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required mounting configurations and performance specifications. Confirm that the supply voltage requirements align with the system design constraints. Check for any available replacement components if the primary part is discontinued. Ensure the connector mount type matches the PCB layout or chassis interface requirements.

Selection Notes

Select this component when a wideband VCO covering 8 GHz to 12.5 GHz is required. The integrated buffer amplifier simplifies circuit design by providing sufficient output power. Consider the 195 mA current consumption and 8-15 V supply range during power budgeting. The connector mount style dictates the mechanical integration method for the final assembly.

Part Context

This part belongs to Analog Devices' RF module family, specifically categorized under wideband voltage controlled oscillators. It is engineered for high-performance applications requiring stable frequency generation across a broad spectrum. The use of GaAs InGaP technology supports reliable operation in demanding environments.

Replacement Considerations

No public confirmed substitute part numbers are available.
