HMC-C033

Overview

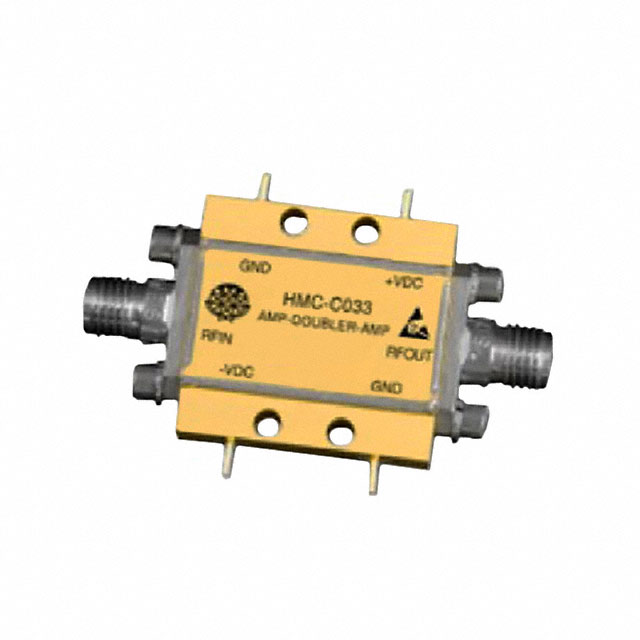

The HMC-C033 is an x2 active broadband frequency multiplier module manufactured by Analog Devices Inc. utilizing GaAs PHEMT technology within a miniature hermetic package. It operates across the 24 GHz to 33 GHz frequency range. When driven by a 3 dBm input signal, the device delivers a typical output power of +17 dBm.

Feature Summary

• Active frequency multiplication with x2 ratio
• Broadband operation in millimeter-wave spectrum
• GaAs PHEMT technology integration

Applications

• Millimeter-wave communication systems
• Frequency synthesis architectures
• Test and measurement equipment

Procurement Notes

Verify component authenticity through authorized channels due to potential supply chain variations. Confirm specific lot codes and manufacturing dates against current Analog Devices records. Ensure handling procedures comply with electrostatic discharge protocols for sensitive semiconductor modules. Review latest datasheets for any design-in updates or recommended operating conditions prior to implementation.

Selection Notes

Select this module when a compact, high-frequency solution is required for doubling base frequencies up to 33 GHz. The hermetic packaging provides environmental stability suitable for demanding applications. Consider the specific drive level requirements and thermal management needs associated with the GaAs PHEMT technology used in this integrated circuit.

Part Context

This component belongs to the HMC series of radio frequency and microwave integrated circuits produced by Analog Devices. It represents a specialized module designed for high-frequency signal processing tasks where size and performance are critical constraints in system design.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
