HMC-C036

Overview

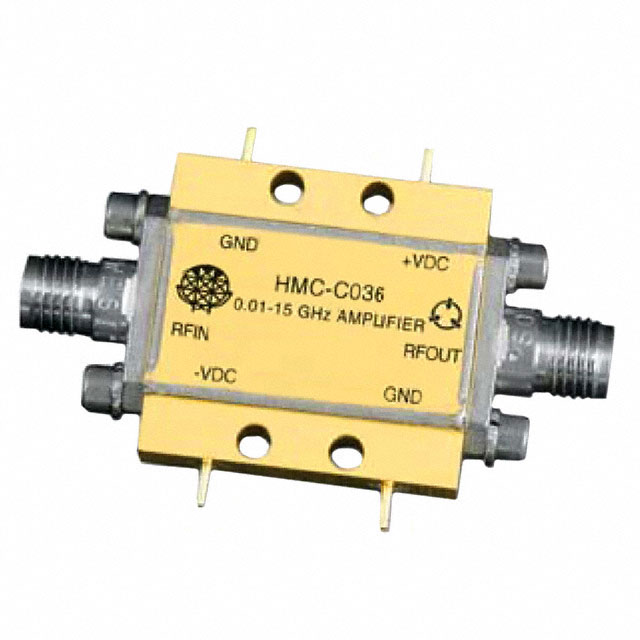

The HMC-C036 is a GaAs MMIC PHEMT power amplifier module designed for wideband applications. It operates within a frequency range of 0.01 GHz to 15 GHz, covering X-band and W-band frequencies. The device features a miniature hermetic package with replaceable SMA connectors, facilitating integration into RF systems. It supports a maximum supply voltage of 16 V and functions reliably across an operating temperature range from 0°C to +85°C. This component serves as a medium-power amplifier solution for broadband signal processing.

Feature Summary

• Utilizes GaAs MMIC PHEMT technology for high-performance amplification
• Features a miniature hermetic module design with replaceable SMA connectors
• Provides wideband operation spanning from 0.01 GHz to 15 GHz

Applications

• Wideband power amplification in RF systems
• X-band and W-band signal processing
• Medium power amplifier modules for communication equipment

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm current availability and technical specifications. As this component may be subject to end-of-life status or limited supply conditions, consult authorized distributors for accurate stock information and lead times. Ensure compatibility with system requirements regarding operating temperature and supply voltage before procurement.

Selection Notes

Select the HMC-C036 when a wideband power amplifier covering 0.01 GHz to 15 GHz is required. Its hermetic package and replaceable SMA connectors offer robustness and ease of integration. Consider its GaAs MMIC PHEMT construction for performance needs in X-band and W-band applications. Verify that the 16 V maximum supply voltage and 0°C to +85°C operating temperature range align with system constraints.

Part Context

The HMC-C036 belongs to Analog Devices' portfolio of RF modules, specifically designed as a GaAs MMIC PHEMT power amplifier. It is engineered for wideband applications, offering reliable performance in demanding environments. The hermetic packaging ensures durability, while the replaceable SMA connectors provide flexibility in system design. This module is suitable for applications requiring medium power amplification across a broad frequency spectrum.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official Analog Devices resources or authorized distributors for potential replacements or obsolescence management strategies.
