Product Detailed Parameters
- Description：IC RF AMP 10MHZ-15GHZ MODULE
- Series：-
- Mfr：Analog Devices Inc.
- Package：Box
- Frequency：10MHz ~ 15GHz
- P1dB：28dBm
- Gain：12.5dB
- Noise Figure：7dB
- RF Type：-
- Voltage - Supply：11V ~ 16V
- Current - Supply：360mA
- Test Frequency：-
- Mounting Type：Connector Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

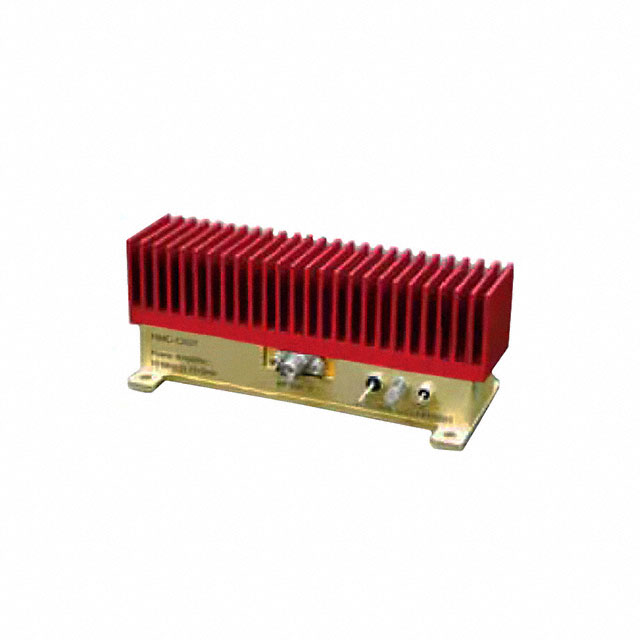

The HMC-C037 is a GaAs MMIC PHEMT power amplifier housed in a benchtop, hermetic module. It operates within a frequency range of 10 MHz to 15 GHz. The device delivers an output power of 28 dBm with a gain of 12.5 dB and a noise figure of 7 dB. It requires a supply voltage between 11 V and 16 V, drawing a supply current of 360 mA.
Feature Summary
- Constructed as a GaAs MMIC PHEMT power amplifier integrated into a robust benchtop form factor.
- Features a hermetic module design equipped with replaceable SMA connectors for flexible interconnection.
- Includes an integral heatsink to manage thermal performance during operation.
Applications
- Benchtop test and measurement equipment requiring wideband amplification
- Signal generation and analysis systems operating across microwave frequencies
- Research and development environments needing modular RF power sources
Procurement Notes
Verify the specific ordering suffix and connector configuration prior to purchase, as modules may vary in pinout or accessory inclusion. Confirm that the required supply voltage and current capabilities align with your system's power infrastructure. Ensure compatibility with the intended frequency range and output power requirements for your specific application setup.
Selection Notes
Select this component when a wideband, high-power solution is needed in a modular format rather than a surface-mount IC. The hermetic package suits environments where reliability and connector interchangeability are critical. Consider the thermal management provided by the integral heatsink and the physical footprint of the benchtop module against available space constraints.
Part Context
This part belongs to Analog Devices' portfolio of RF modules designed for versatile integration. Unlike discrete MMICs, the HMC-C037 provides a complete, shielded solution with integrated passive components and connectors. It targets applications demanding stable performance over a broad frequency spectrum without the complexity of designing custom matching networks.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Evaluate other Analog Devices hermetic modules or wideband power amplifiers based on frequency coverage and output power specifications if a direct replacement is required.
FAQ
What type of connectors does the HMC-C037 use?
The module features replaceable SMA connectors.
Is the HMC-C037 a surface-mount device?
No, it is housed in a benchtop, hermetic module format.
