HMC-C059

Overview

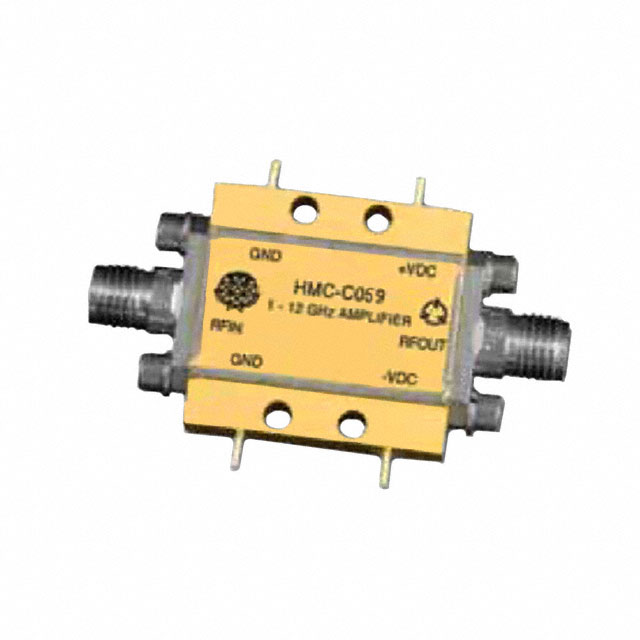

The HMC-C059 is a GaAs MMIC pHEMT low noise distributed amplifier housed in a miniature hermetic module with replaceable SMA connectors. It operates between 1 and 12 GHz, providing 16 dB of gain and an 1.8 dB noise figure.

Feature Summary

• Utilizes GaAs MMIC pHEMT technology for low noise performance
• Housed in a miniature hermetic module with replaceable SMA connectors
• Designed as a low noise distributed amplifier

Applications

• VSAT systems
• RF signal processing within 1-12 GHz range

Procurement Notes

Verify the specific revision and connector type upon ordering. Confirm availability status as supply may be limited. Ensure the hermetic module packaging meets environmental requirements for the intended application environment before finalizing procurement decisions.

Selection Notes

Select this component when a low noise distributed amplifier is required for frequencies between 1 and 12 GHz. The hermetic module design suits applications needing robust RF performance with standard SMA connectivity considerations.

Part Context

This part belongs to Analog Devices' portfolio of RF amplifiers. It is specifically categorized as a low noise amplifier module designed for high-frequency applications requiring stable gain and minimal noise contribution in the microwave spectrum.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official Analog Devices resources for potential alternatives if this specific module is unavailable.

FAQ

What is the operating frequency range?

The HMC-C059 operates between 1 and 12 GHz.

What is the package type?

It is housed in a miniature hermetic module with replaceable SMA connectors.
