HMC-C070

Overview

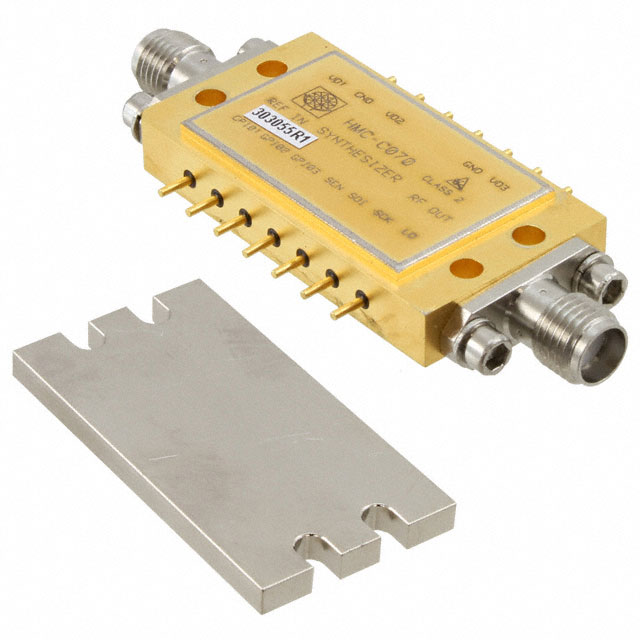

The HMC-C070 is a fully integrated broadband synthesizer module from Analog Devices Inc., combining high-performance SiGe, GaAs pHEMT, and InGaP HBT technologies within a compact sealed package. It operates with an output frequency range of 5.5 GHz to 10.5 GHz. The device features a 24-bit step size providing 1.2 Hz resolution for precise frequency control. It includes auto and triggered sweeper functions for dynamic signal generation. The module integrates low-noise voltage regulators to ensure stable operation. It utilizes SMA connectors for interface connectivity and is designed for military electronic warfare applications.

Feature Summary

• Fully integrated broadband synthesizer combining SiGe, GaAs, and InGaP technologies
• High-resolution frequency control with 24-bit step size and 1.2 Hz resolution
• Integrated auto and triggered sweeper functions for dynamic signal generation
• Built-in low-noise voltage regulators for stable power management

Applications

• Military Electronic Warfare (EW) systems
• Electronic Countermeasures (ECM) applications
• Broadband signal generation in RF modules

Procurement Notes

Verify the current lifecycle status before procurement as the component may be discontinued or subject to limited supply conditions. Confirm that the SMA connector interface matches system requirements. Ensure the operating voltage aligns with the specified 6 V supply. Check for valid manufacturer authorization to avoid counterfeit components. Validate technical specifications against the official datasheet for compatibility with existing designs.

Selection Notes

Select this module when a compact, fully integrated solution is required for broadband synthesis between 5.5 GHz and 10.5 GHz. It is suitable for applications demanding high frequency resolution and dynamic sweeping capabilities. Consider the integrated voltage regulators for simplified power design. Evaluate the sealed package form factor for environmental protection needs. Compare performance metrics against discrete solutions for size and integration benefits.

Part Context

The HMC-C070 belongs to the MicroSynth family of broadband synthesizers by Analog Devices Inc. These modules are engineered for high performance in compact forms. They integrate multiple semiconductor technologies to achieve wide bandwidth. The product line targets demanding RF applications requiring precision and reliability. This specific model focuses on the 5.5-10.5 GHz range with advanced control features.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify if newer revisions of the MicroSynth series offer equivalent specifications. Consult Analog Devices for end-of-life notifications or recommended upgrades. Ensure any replacement maintains the same frequency range and interface type.
