Product Detailed Parameters
- Description：IC RF AMP VSAT 6GHZ-12GHZ MODULE
- Series：-
- Mfr：Analog Devices Inc.
- Package：Box
- Frequency：6GHz ~ 12GHz
- P1dB：20dBm
- Gain：11dB
- Noise Figure：4.5dB
- RF Type：VSAT
- Voltage - Supply：7V
- Current - Supply：170mA
- Test Frequency：-
- Mounting Type：Connector Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

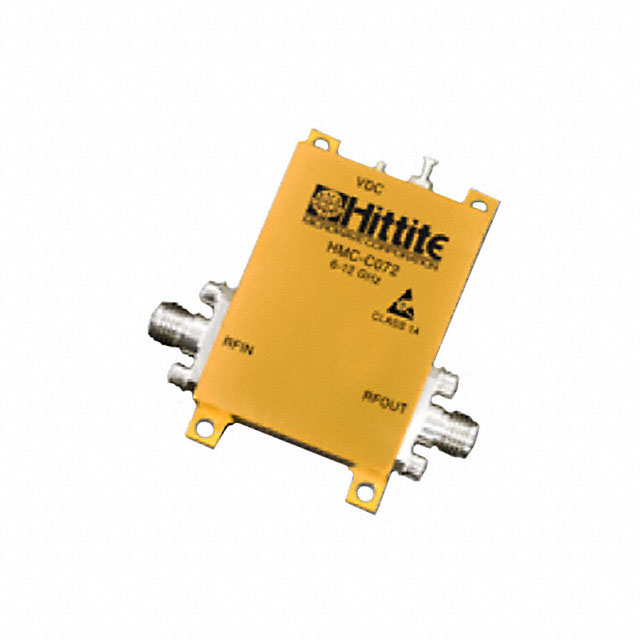

The HMC-C072 is a GaAs HBT ultra-low noise amplifier module designed for operation between 6 and 12 GHz. It provides 11 dB of gain with a 4.5 dB noise figure. The device features high dynamic range performance, supporting an output power of up to 23 dBm. Packaged in a miniature hermetic module, it operates within a voltage range of 7V to 8V.
Feature Summary
- Utilizes GaAs HBT technology for low noise performance
- Encased in a miniature hermetic module package
- Designed for high dynamic range applications
Applications
- Satellite communication systems
- Point-to-point microwave links
- Electronic warfare equipment
- Test and measurement instrumentation
Procurement Notes
Verify component authenticity through authorized Analog Devices channels or certified distributors. Confirm the specific manufacturing lot date code against project requirements. Ensure proper handling procedures for hermetic modules are followed during storage and assembly. Check for any end-of-life notifications or obsolescence status prior to final procurement decisions.
Selection Notes
Select this component when ultra-low phase noise and high linearity are critical in the 6 to 12 GHz band. Consider the hermetic package for harsh environment reliability. Evaluate thermal management needs due to the module form factor. Compare against integrated solutions if size constraints are less restrictive than noise performance requirements.
Part Context
This part belongs to the HMC-C series of amplifier modules from Analog Devices. These modules integrate GaAs HBT amplifiers into compact packages. The series targets RF front-end applications requiring stable gain and low noise figures across microwave frequencies without external matching networks.
Replacement Considerations
Public confirmed substitutes include the HMC-C076, HMC-C077, and HMC-C079. These alternatives share similar frequency ranges and technology but may differ in specific gain or noise specifications. Verify pinout compatibility and thermal characteristics before substitution.
